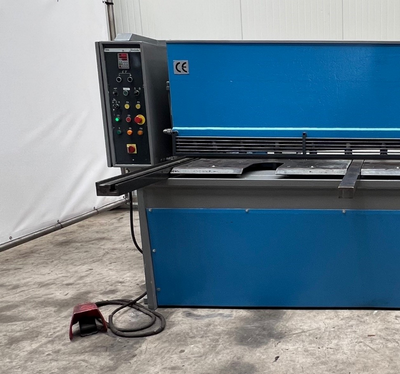

Baykal HGL 3100 X 6

Sheet width: 3060 mm
Plate thickness: 6.0 mm
Plate thickness stainless steel: 4.0 mm
Distance between columns: 3100 mm
Control: ELGO P9521
Backgauge adjustable range: 6 – 750 mm
Backgauge travel X: 750 mm
Backgauge travel speed: 100 mm/s
Cutting angle: 1.6°
Number of hold downs: 16
Number of strokes: 10 – 15 strokes/min
Oil volume: 160 l
Total power requirement: 18.5 kW
Machine dimensions: 3900 × 2300 × 1630 mm
Machine weight: 6300 kg
Electro-hydraulic swing beam shear
Digital display for electric backgauge
Ball screw drive for backgauge
Side stop with T-slot
Flip stop
Millimeter scale
Front support arms
Electric cutting length limiter
Manual cutting gap adjustment
Front support plates
Front finger guard
Inching operation with push buttons
Protective grille behind machine
Operating instructions
