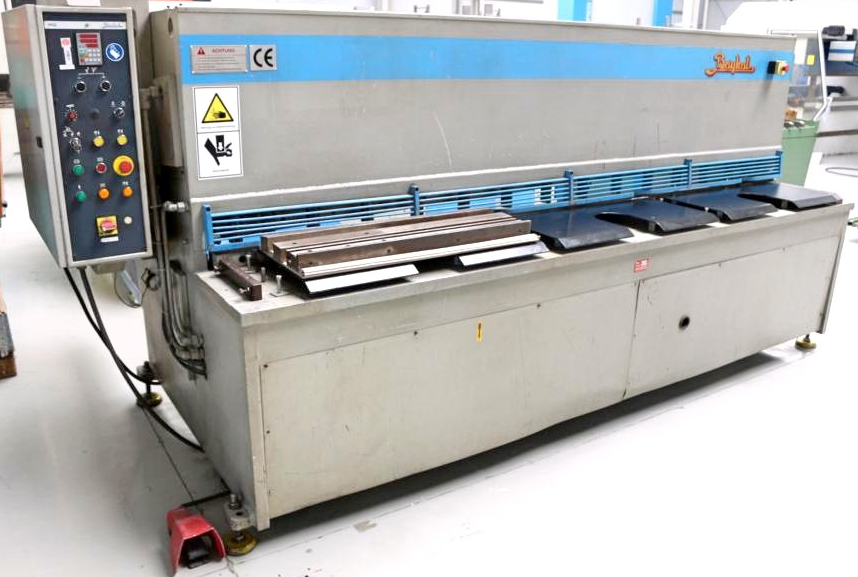

Baykal HGL 3100 x 8

Sheet width: 3060 mm
Plate thickness: 8.0 mm
Stainless steel thickness: 6.0 mm
Distance between columns: 3100 mm
Downholder: 16 pcs
Number of strokes: max. 10–15 strokes/min
Oil volume: 160 l
Cutting angle: 1.6°
Back stop adjustable: 6–750 mm
Control: ELGO P9521
Total power requirement: 18.5 kW
Weight: 6300 kg
Machine dimensions (LxWxH): 3900 x 2300 x 1630 mm

Robust electro-hydraulic swing beam shear
ELGO digital display model P9521 for electric backgauge
Backgauge travel X = 750 mm
Backgauge-free ball screw drive
Travel speed 100 mm/s
1x stable side stop with T-slot, flip-stop, and millimeter scale
2x stable front support arms
Electric cutting length limiter
Manual cutting gap adjustment centrally operated on the right side stand
Front support plates
Front finger/interference guard
Inching operation with push buttons on the left control panel
Protective grille safety device behind the machine
Operating instructions (PDF)
