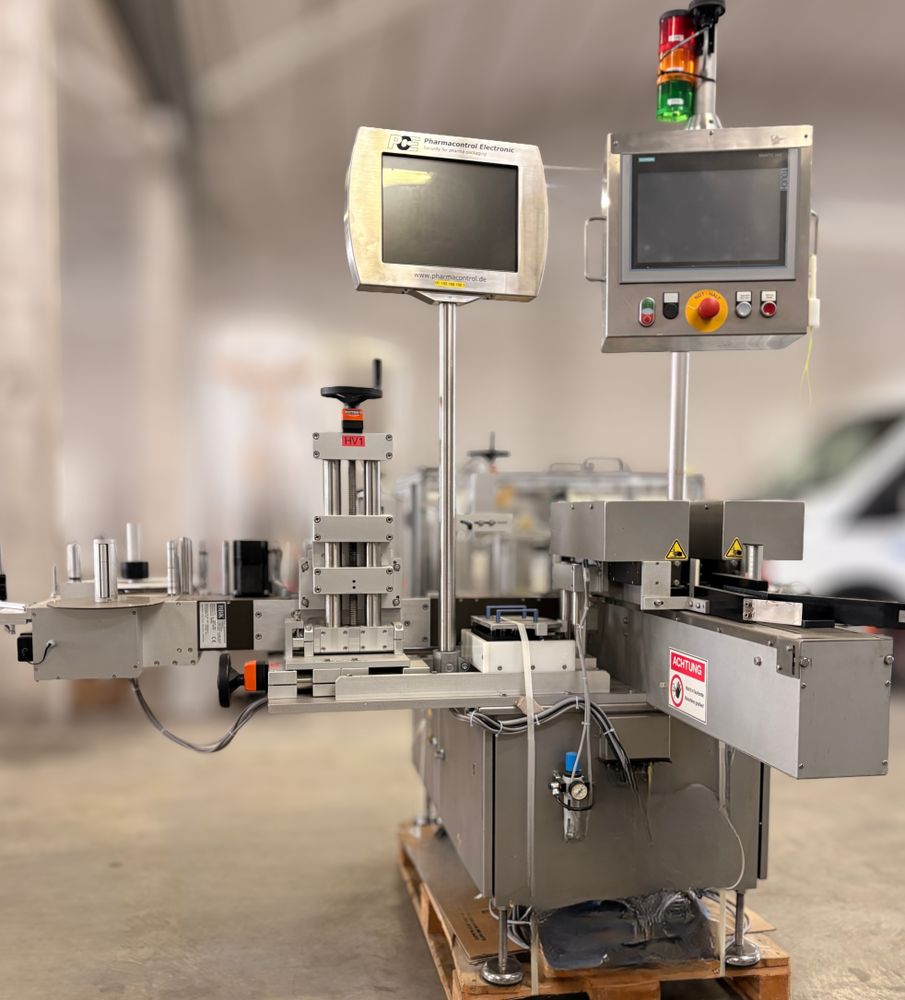

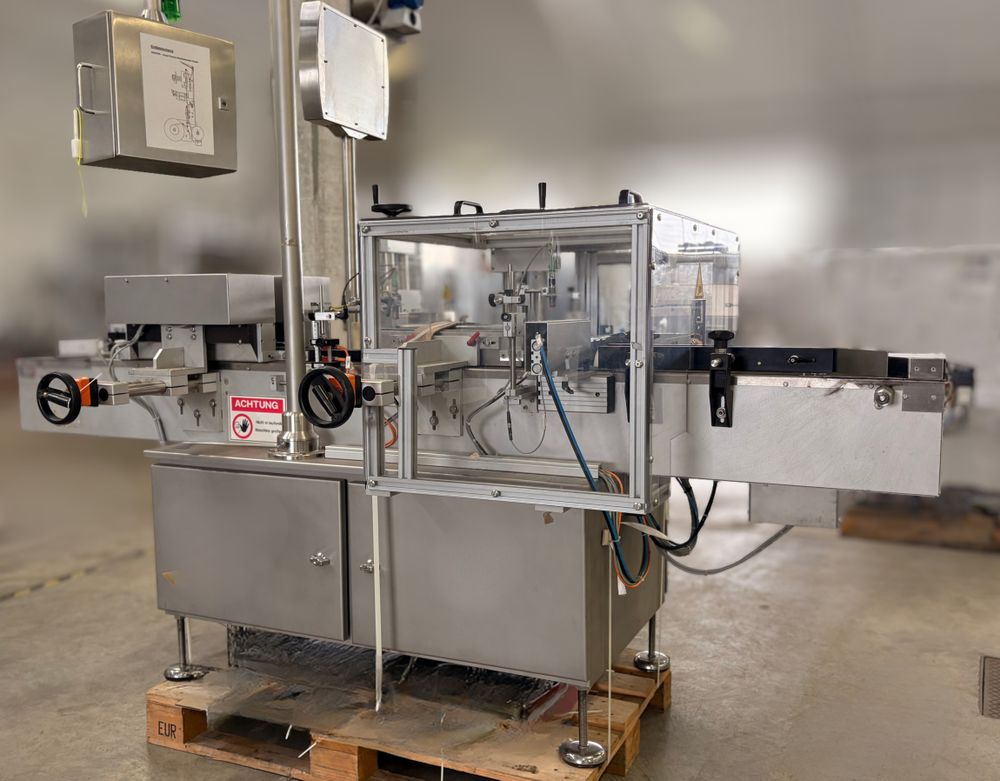

BBK ESB 0909 Labelling machine
EUROPE (Western and Northern)

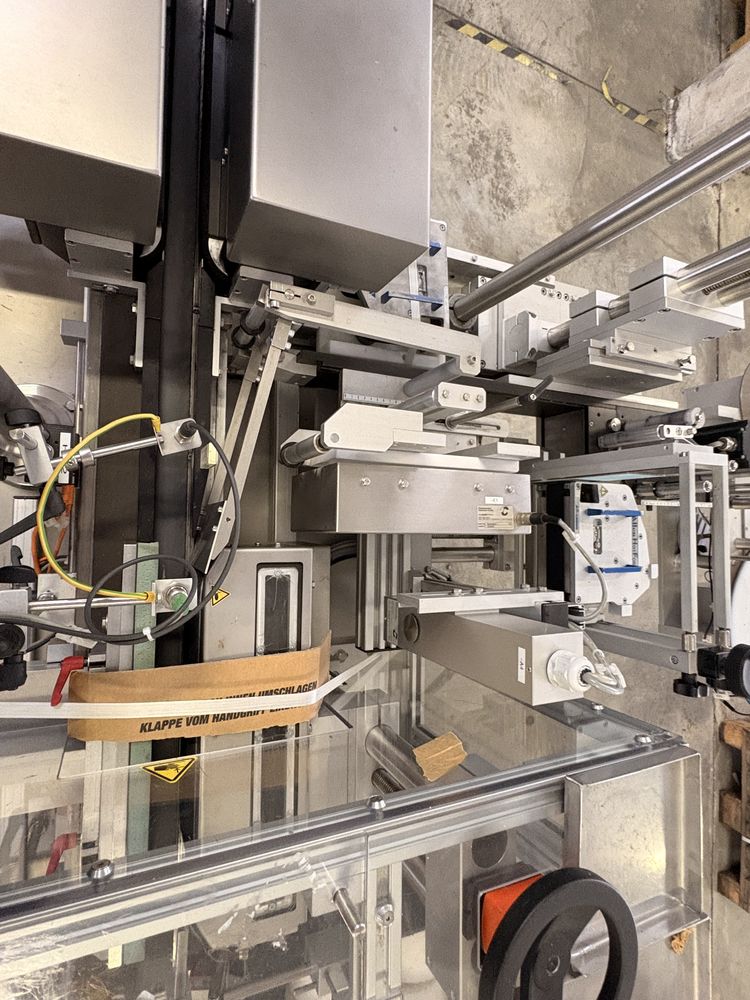

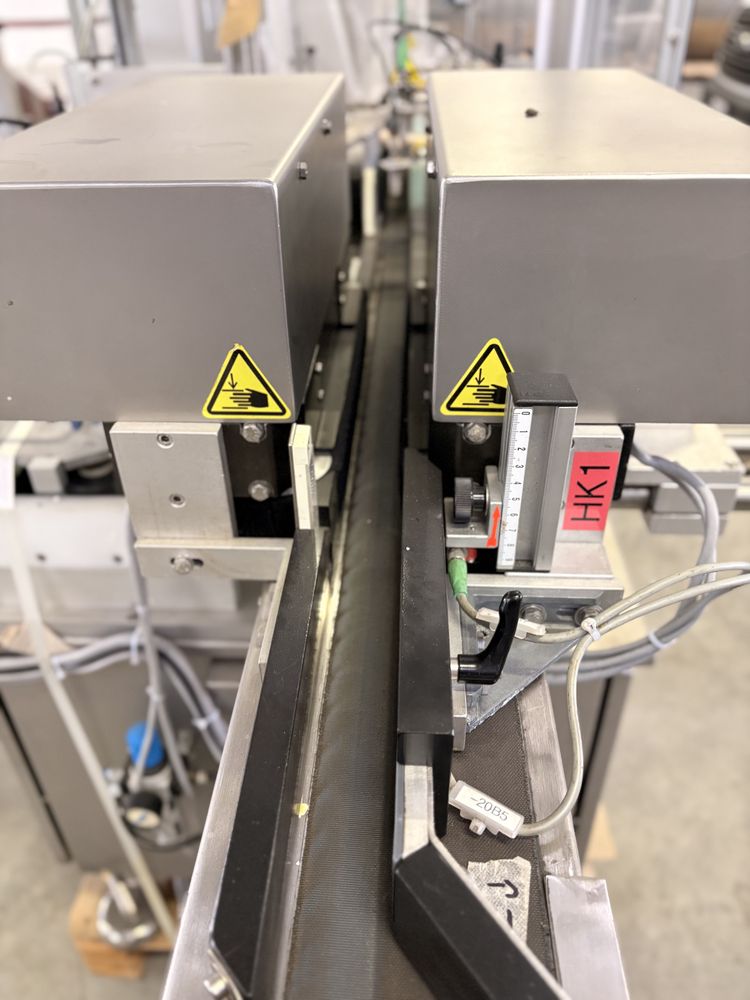

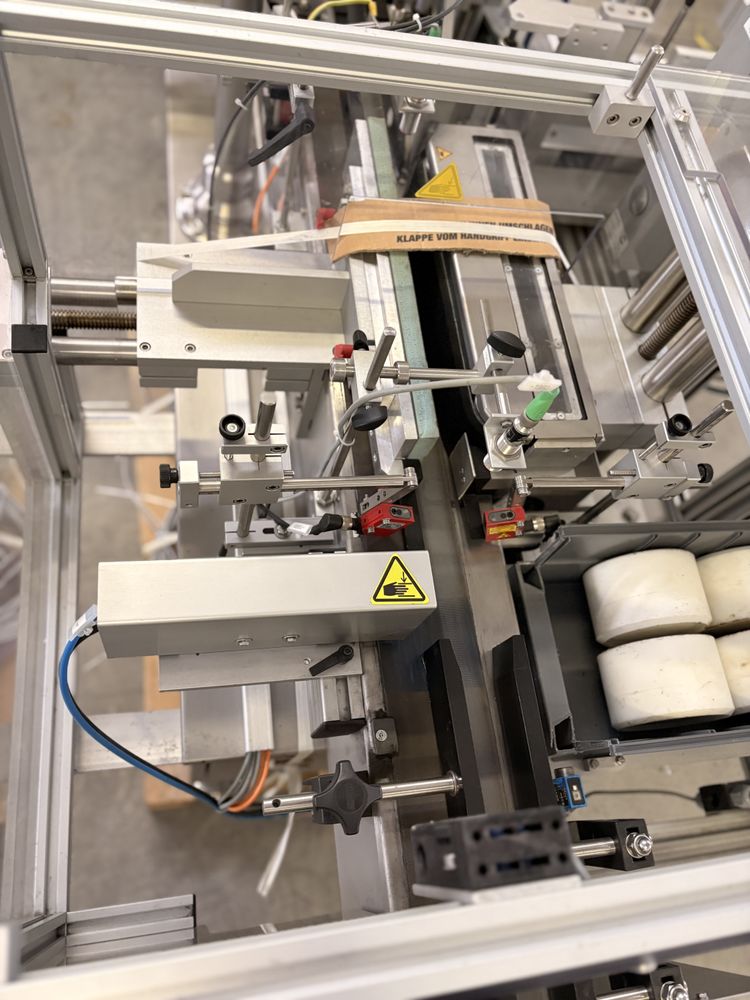

The BBK ESB (Etikettier- und Sondermaschinenbau) is a modular system designed for precision labeling on high-speed packaging lines. It stands out for its robust stainless steel and anodized aluminum construction, typical of German engineering, ensuring stability even under heavy-duty use. This system integrates a dedicated conveyor belt and “Rapid” series labeling heads, known for their positioning accuracy (+/- 0.5 mm). The versatility of the ESB series allows for wrap-around labeling on cylindrical products or applications on flat surfaces (top/bottom), making it ideal for pharmaceutical and cosmetic end-of-line processes. Furthermore, this specific model integrates an industrial vision system for real-time verification of label application and data compliance (such as batch codes and expiry dates).
Labeling Accuracy: Up to +/- 0.5 mm (thanks to high-resolution stepper motors).
Dispensing Speed: Electronically adjustable up to 30-60 m/min (depending on the installed head).

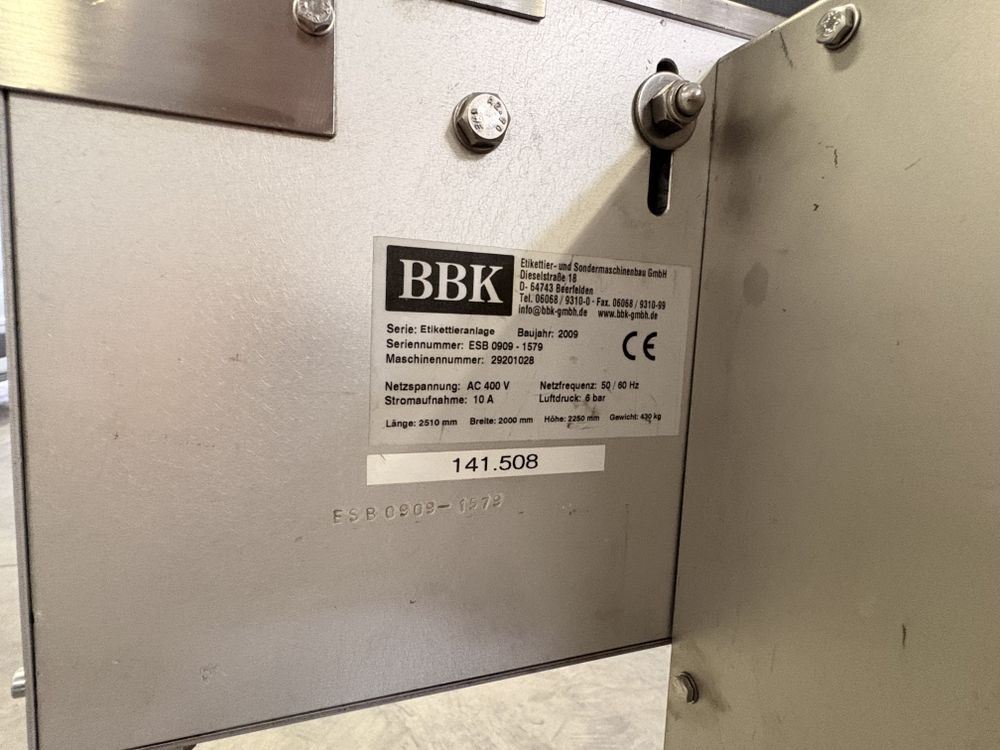

Overall Dimensions: Length 2510 mm | Width 2000 mm | Height 2250 mm.
Machine Weight: 430 kg (heavy-duty self-supporting anti-vibration structure).

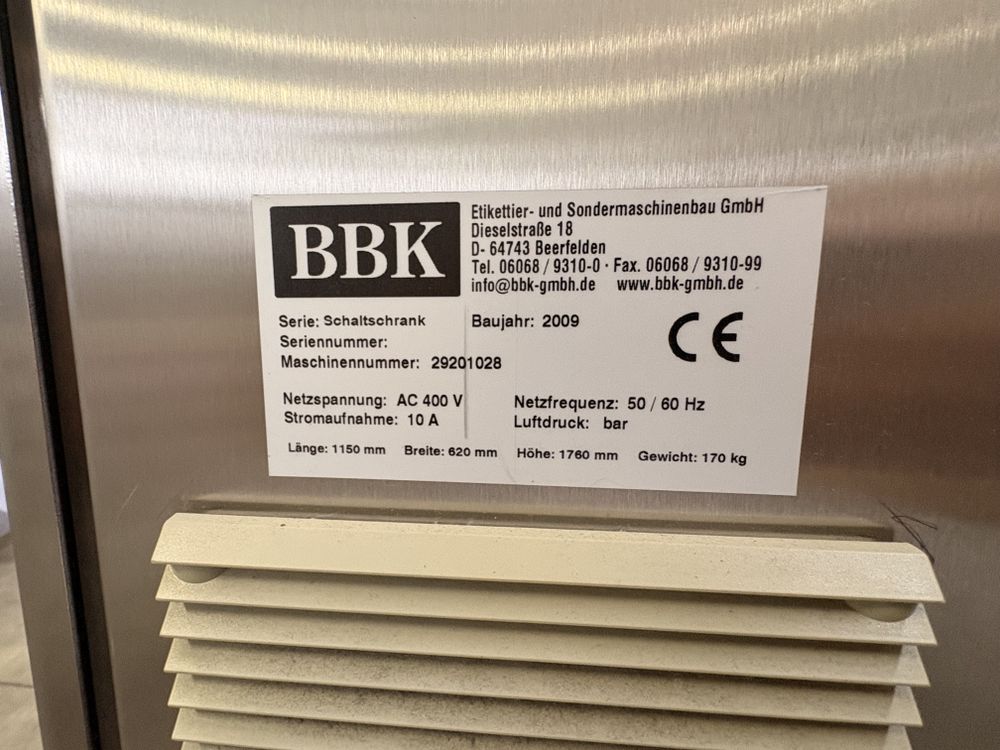

Power Supply: AC 400 V / 50-60 Hz / Three-phase.
Current Consumption: 10 A.
Pneumatic Pressure: 6 bar (for air-blow applicators or stabilization cylinders).

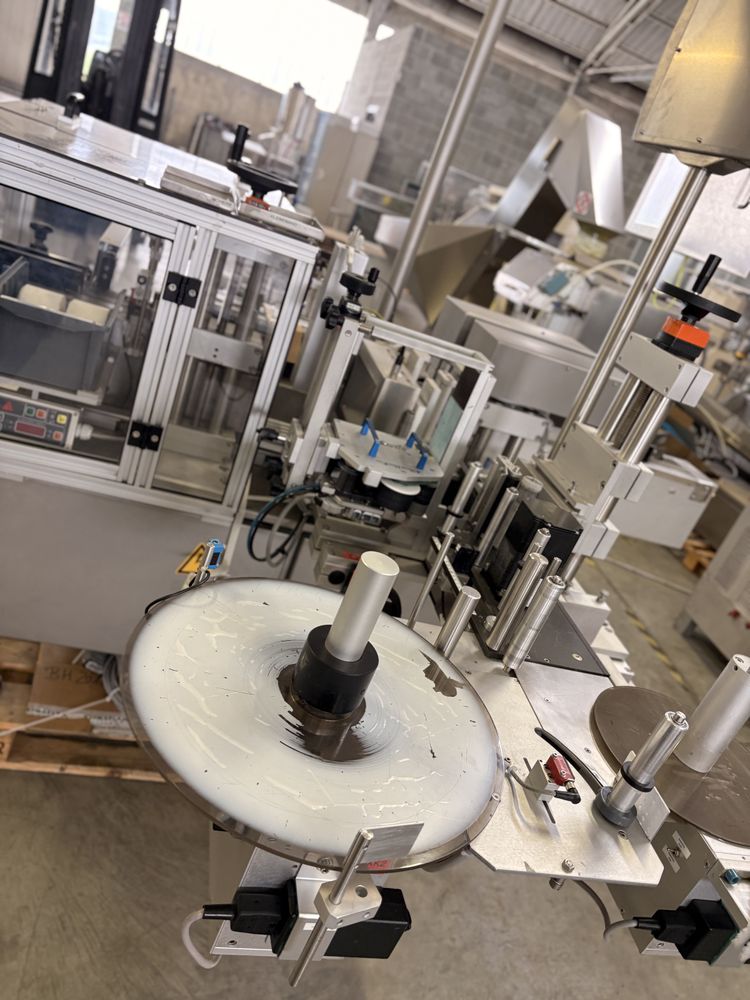

Label Roll Diameter: Standard up to 290 mm (optional up to 400 mm).
