Beam 3

Highcon Beam 3 Laser Die Cutter

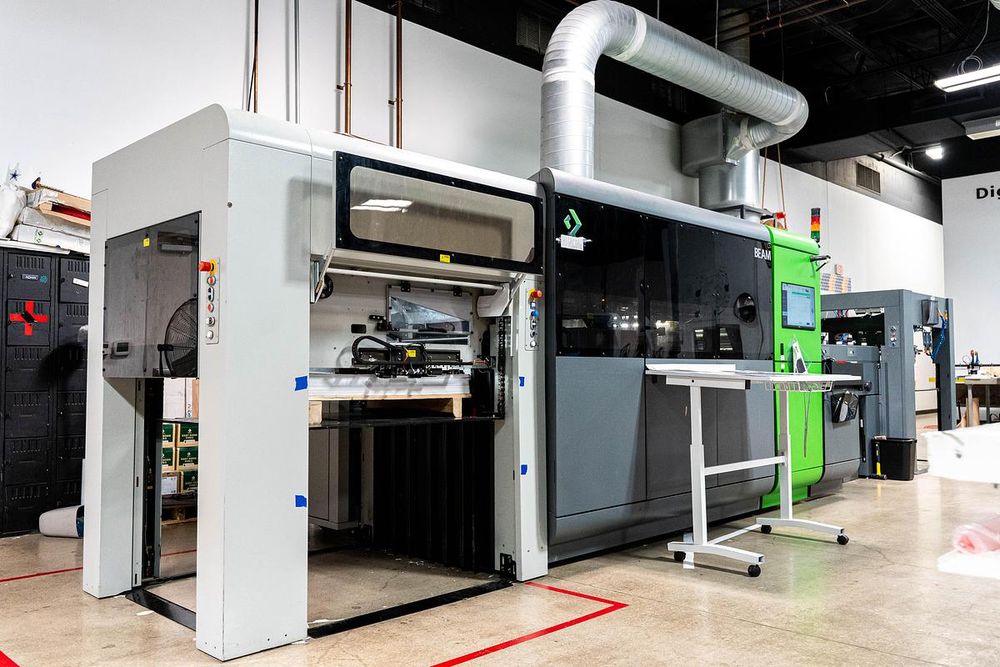

The machine is a Highcon Beam 3
Year: 2019 Purchased as a Beam 2
Upgraded to Beam 3 in field in September 2024
Format: B1 28" x 40"
Sheet count: 3,233,225

Type: Sheet Fed Laser Die Cutter
Comes with: Lauda chiller & Cyclone Exhaust unit
Max sheet format: 760mm X 1060mm/ 30" X 41.7"
Min sheet size: 500mm x 700mm/ 19.7" x 27.5"
Speed: Up to 5,000 sheets per hour, based on job intricacies
Cutting area: 740mm x 1050mm/ 29" x 41"
Machine is under power and running currently runs from 10pt SBS C1S up to 24pt SBS C2S.
It can run thinner and thicker stocks as well.
