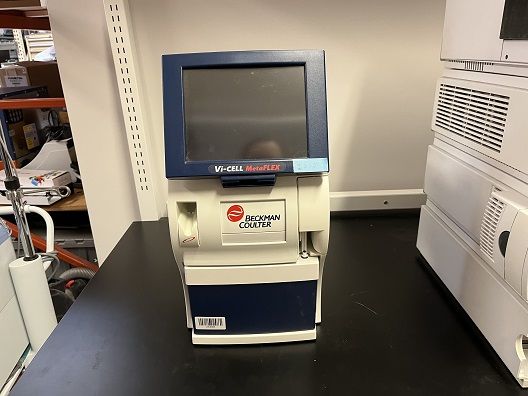

Beckman Coulter Vi-Cell MetaFlex Metabolite Analyzer

Beckman Coulter Vi-Cell MetaFlex Metabolite Analyzer
Speed, Reliability, Low Sample Volume
Measuring samples as small as 65 µL and returning results in just 35 seconds,
our new Vi-CELL MetaFLEX bioanalyte analyzer evaluates pH, pO2, pCO2, glucose, lactate, electrolytes and more.
With less maintenance, more reliability and a surprisingly small footprint,
it’s a sophisticated research solution that profiles test samples quickly,
easily and accurately—keeping your test cell cultures in balance, viable and growing.

Operation:
Results in 35 seconds
Small sample volume (65 μL, all parameters)
Process 44 samples per hour
Cycle time per sample is 1 minute
23.5 hours per day average uptime
May vary during startup (2.5 min for system calibration is longest activity)

Quality Management
3 dedicated QC solutions
Automatic failure detection & resolution
Continuous system & analysis checks
Automatic lockout of parameter(s) that fail QC
Customizable QC schedule

Applications :
R&D
QC
Manufacturing
Ideal for micro to large scale cell culture applications, the Vi-CELL MetaFLEX is designed for rapid and accurate Bioanalyte analysis.

Hardware
Computer specifications:
Processor Intel Celeron M 600 MHz
with 512K L2 Cache
1 GB RAM
2 GB SolidState storage
8.4” color TFT-LCD, resolution

800 × 600 Touch screen
4” thermal-sensitive printer

Interface
Built-in barcode reader for operator & sampler ID
Accepted codes: UPC/EAN, Code 128, Code 39,
Code 93, I 2 of 5, Discrete 2 of 5, Codabar and more
Serial interface RS232 with power for external

barcode reader
3 USB connections
Optional external keyboard
Optional external mouse
Optional external barcode reader

Inlet
Left/right hand operation
Position for syringe as well as capillary and test tube

Aspiration from capillary without
adapter
Aspiration time 5 seconds

Software
Software platform
Windows 10 Enterprise IoT
Sybase SQL Anywhere

Data capacity
Sample results log: 2000
Activity log: 5000
Calibration adjustment log: 1000
Data secured by password protection
8 different user profiles
Unlimited ID access verification
Printer display options
Auto print (on/off)
Select derived parameters
Select input variables
Reference ranges with results

Security and QA features
Advanced planning of replacement and QC schedules
Optional automatic QC at startup and after replacements
Customizable QC and calibration schedule

Communication
HIS/LIS communication
High-level protocols:
ASTM
HL7
POCT1-A
Low-level serial protocols:
ASTM 1381-91
E1394-91
Serial RAW
Low-level network protocols:
TCP/IP

Additional Information
Dimensions:
Height: 45 cm 17.7 in
Width: 25 cm 9.8 in
Depth: 29 cm 11.4 in
Weight: 11 kg 24.4 lbs

Other:
Startup time: 1.5 hours average (less than 4 hours)
Operating Environment: 15 – 32° C / 59 – 89.6° F, 20 – 80% RH
Altitude Correction: Up to 4000 m / 13,124 feet above sea level
Power: 100 – 240 V; 50 – 60 Hz; 250 VAC
Thermostat Control: Sensor cassette: 37 ± 0.15° C /98.6 ± 32.27° F
Oximetry: 37 ± 0.30° C /98.6 ± 32.54° F
