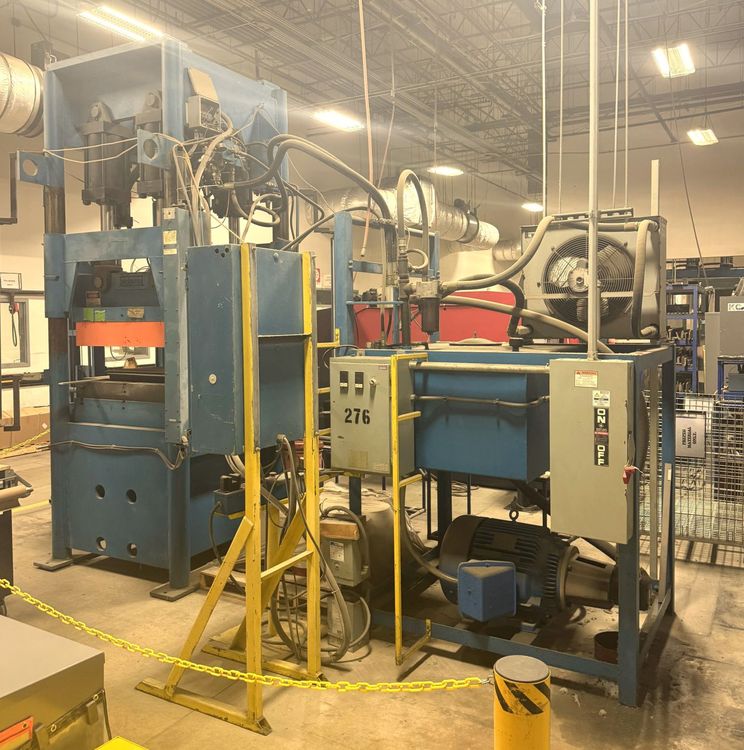

Beckwood DOWN ACTING PRESS 300 tons

48 tons stripping
Stroke 12″
Daylight to bed 41″
Bed area 40″ x 40″
Ram area 40″ x 40″
Distance between posts 41″ x 40″
Usable bed area 41″ x 40″
Ram speed down 294 in/min
Ram speed pressing 49 in/min
Ram speed return 343 in/min
Floor to bed height 41″
Cylinder size (4) 8″ diameter
Cylinder size (2) 5″ diameter
Post size 5″ diameter
Control Allen-Bradley SLC-5/03 PLC
Hydraulic system Parker Hannifin PFVH35V piston pump
Tank capacity 200 gallon
Motor 75 HP
Dimensions 72″ x 60″ x 144″
Hydraulic unit dimensions 60″ x 48″ x 96″
Weight approx. 20,000 lbs
75 ton cushion in base
Floor standing design
