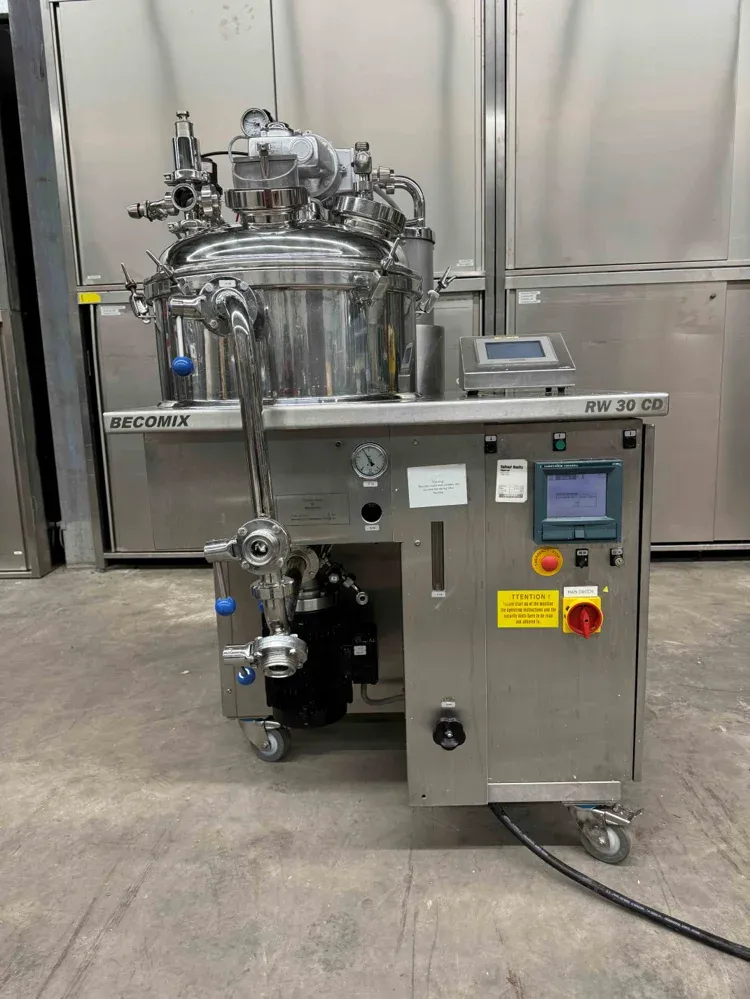

Becomix RW 30 CD Homogenizing mixer

Second-hand Becomix process vessel,
model RW30CD, made of stainless steel.
Maximum usable volume: 30 litres.
Approximate working volume: 2–25 litres (depending on the product).
The unit features a clamped, domed lid and a conically welded base.
The interior is designed for a maximum permissible operating pressure
of 2 bar (29 psi) at 133°C (273°F), as well as
for a maximum permissible external pressure
of 1 bar vacuum (15 psi FV) at 5/133°C (41/273°F).
The minimum design temperature of the metal is 5°C (41°F) at 2 bar (29 psi).
The outer stainless steel jacket is designed for a maximum operating pressure
of 4 bar (58 psi) at temperatures ranging from 5°C (41°F) to 152°C (306°F).
The unit is fitted with a top-mounted, electrically driven agitator
with gearbox and a bottom-mounted, electrically driven homogeniser.
Mounted on a mobile stainless steel frame.
Chamber I Chamber II max./min. pressure PS 1/-1 4 max./min.
temperature TS 120 °C 152 °C
Volume 59 2.65
Test pressure PT 1.44 7.43
