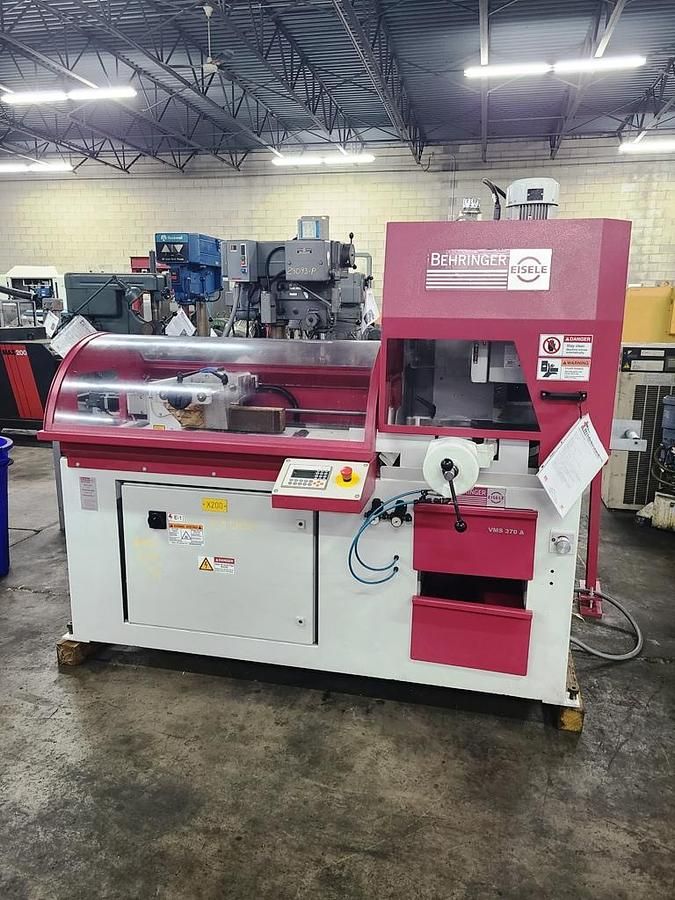

Behringer VMS 370 A COLD SAW SemiAutomatic

Behringer VMS 370 A
2019

Operating pressure 72.52–116.03 PSI (5–8 Bar)
Flat cutting capacity 200 mm
Round cutting capacity 130 mm
Square cutting range 10–100 mm
Rectangular cutting range 20 x 10 mm to 200 x 100 mm
Saw blade diameter 370 mm
Programmable piece count 1–99999
Rectangular 90° cut range 10 x 10 mm to 200 x 100 mm
Rectangular 45° bevel cut range 10 x 10 mm to 140 x 100 mm
Round 90° cut range 10–130 mm
Round 45° bevel cut range 10–130 mm
Saw blade speeds 8, 16, 32, 64
Mitre angle up to 60°
Material feed axis travel 800 mm
Cutting length range 10–6000 mm
First cut length range 0–300 mm
Clamping stroke 10 mm
Clamping force 300–3000 N @ 6 Bar
Clamping force 400–4000 N @ 8 Bar
Manually adjustable clamping jaw path 200 mm
Material feed rate 0–18 m/min
Compressed air supply 101.53 PSI (7 Bar)
PW 35 Control
Manual/pneumatic vise
Manually adjustable mitre saw head
Removable chip pan
Lift-up guarding
Part exit chute
120" manual roller conveyor
Wired for 3-phase, 60 Hz, 400 V
Overall size 84" x 55" x 78"
Machine weight 1764 lbs
Conveyor size 120" x 10" x 36"
