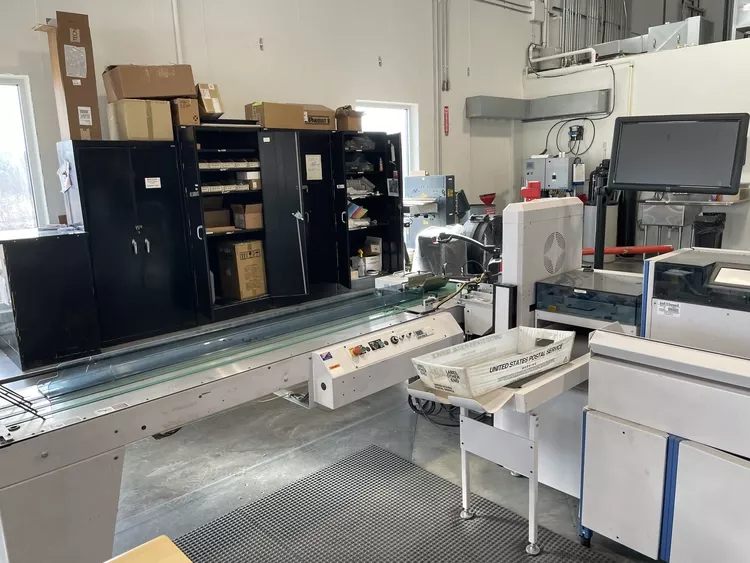

Bell And Howell Ascender 16 Inserter

Input Channel:
- (1) 2-up 36K Cutter with Single Cut Blade and Trim Chute
- Chip Cut for Cutter
- Hold/TOS Module (Right/Inside)
- 4920 - Dual Deck Accumulator - Medium Folder - Collector
- (2) JETVision Bottom Mounted Area Scan Camera
- Web Stabilizer - Continuous Forms
- Format Turn

Ascender 16 Base:
- Inserter Base with 4 Insert Stations
- (2) Friction Feeders, (2) Rotary Feeders (or 4 Friction)
- Insert Station Camera for Check Matching

Post Processing Modules:
- Single Envelope Marker
- (1) Divert with Conveyor (divert functionality to be determined)
- (1) Meter Stand - Fixed or Variable Weight Hasler WJ Pro (customer supplied meter)
- JETVision Slim, Top-mounted Line Scan Camera with Monitor
- Hand Scanner
- On-edge Conveyor (Kirk-Rudy - for Flats and Fold)

Software Components:
- Navigator
- Reports Printer and Stand
- CWCO (Computerized Weighing/Computerized Optimization)
- JETVision Image Output (JV Slim)
- Special Navigator reports function

Specifications:
Maximum cycle speed (insertions/hr) 16,000 for #9 and #10
- 14,000 for 6″ × 9″ and 6” x 9.5”
- 12,000 for #14 (brokerage)
- 9,000 for flats

Feeder types
- Rotary
- Friction

Envelope sizes:
- Minimum: 4.125” x 8.25” (104.8 mm x 209.6 mm)
- Maximum: 10.0” x 13.9” (254.0 mm x 353.1 mm)
- Maximum collation thickness: 0.5” (12.7 mm)
*smaller sizes available upon special request

Insert sizes:
- Minimum: 3.125” x 5.5” (79.4 mm x 139.7 mm)
- Maximum: 8.5” x 11.69” (215.9 mm x 296.9 mm
