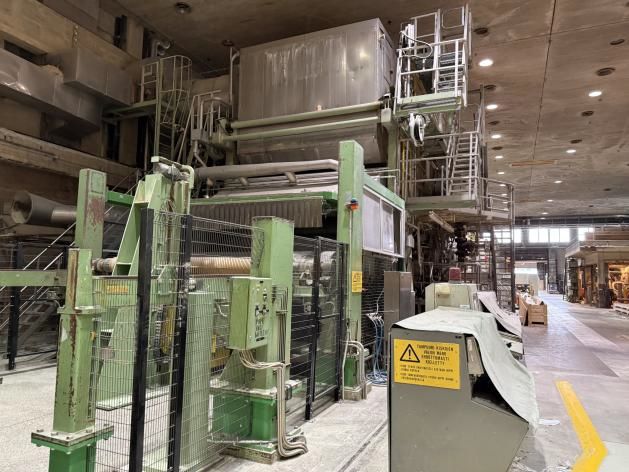

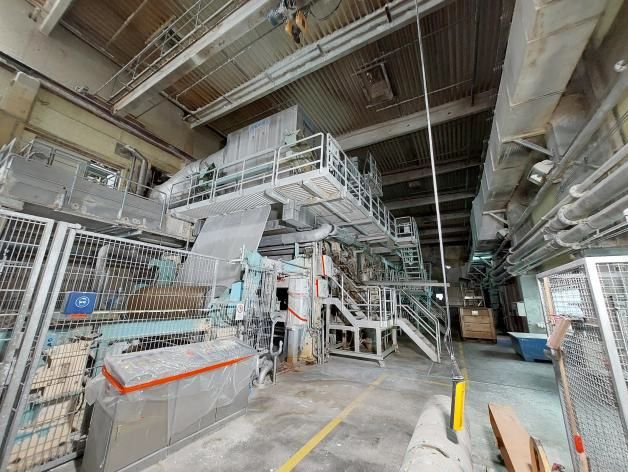

Beloit Twin-Wire suction breast Tissue & MG paper machine 3.400 mm 12-50 gsm 74 TPD

Type SBR Suction Breast Roll
– HDBX Single layer, Beloit 1992
– Press section Douple (SPR + BPR), PMT2008
– Yankee Toscotec SYD 2012
– Max speed 1450 m/min
– Width total pope 3400 mm in mother reel
– Max production 74 t/d average
– MG and Tissue paper 12 – 50 gr/m2

Details of Paper machine

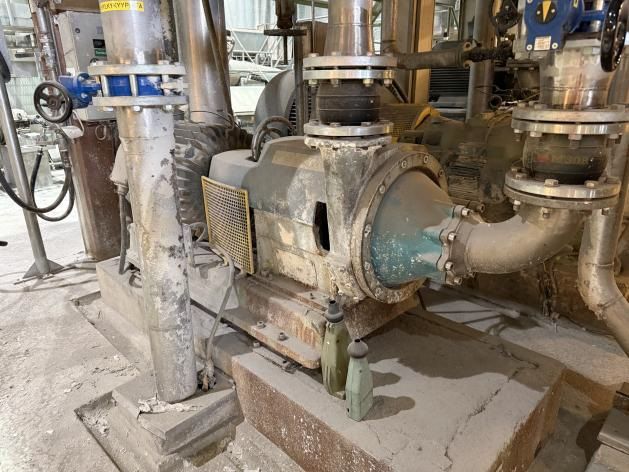

• Fun Pump ABS / 1992ABS Z22 600/600 75 2X288 kW, AC 500V
• Head box Beloit 1992 single layer SBR
• Suction breast roll diameter Beloit 951 and Metso 956 mm power drive 113 kW
DC 400 V
• Felt roll PMT 2008 diameter 516 mm power drive 132 kW DC 400 V
• Suction press roll PMT 2008 diameter 1.066 mm
• Blend press roll PMT 2008 diameters available 904, 899 and 905 mm power
drive 315 kW DC 400 V

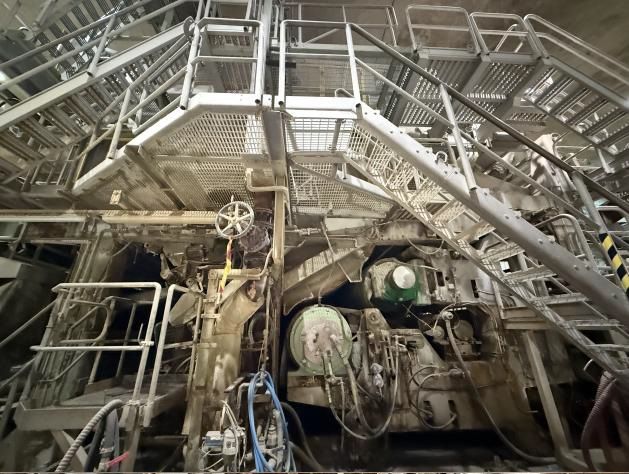

• Yankee on steel Toscotec year 2012, press 10 bars, diameter 4.572 mm power
drive 500 kW DC 400 V doctor creping Lamort
• Complete close hood with burners and blowers

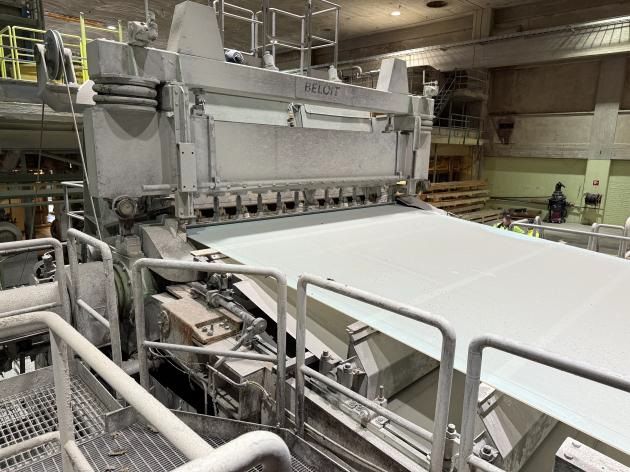

• Pope reel Beloit 1968 power drive 58 kW DC 400 V

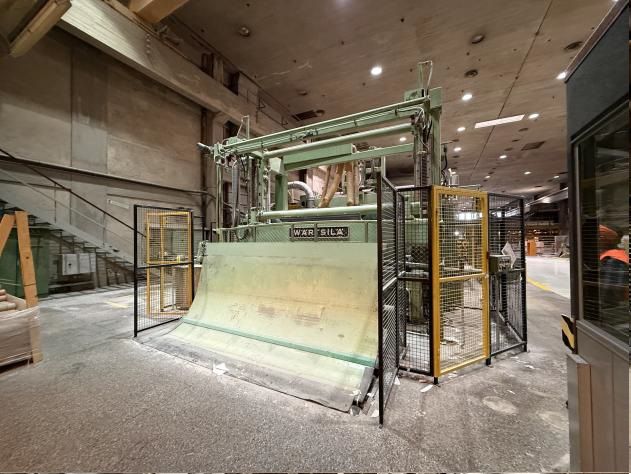

• 4 unwind stands rewinder built by Wartsila 1982 and overhauled in 2005 with
new automatic cutting group

Details of Fibre Section
• Refiner 1Sunds / 1992 JC 02 315 kW, AC 500V
• Refiner 2Beloit / 1968Jones double D220 kW, AC 500V
• Screen 1Tampella / 1992 TL450AH 75 kW, AC 500V
• Screen 2Tampulping / 2008 Tam Screen 0430 kW, AC 500V
• Disk filter Andritz / 2003 AHLDISC AD3506/05 5,5 kW
• Dust extraction Metso / 2012 Partly used to Pm9

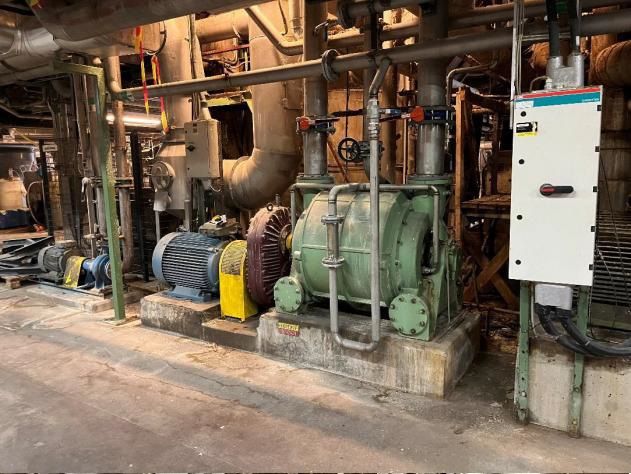

Details of Vacuum system

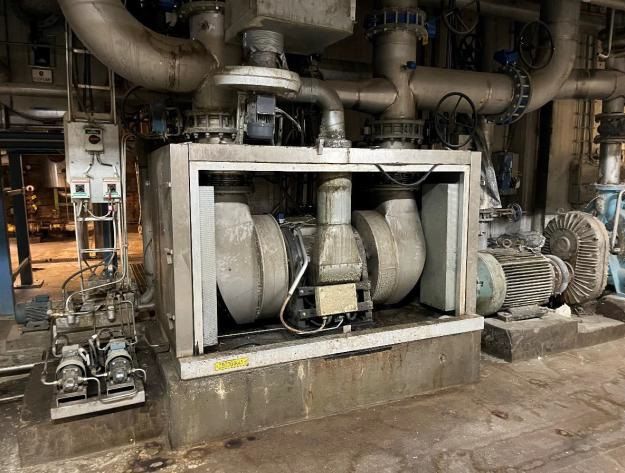

• Turbo Blower Ecopump / 2005 Ecopump 315 315 kW, AC 500V

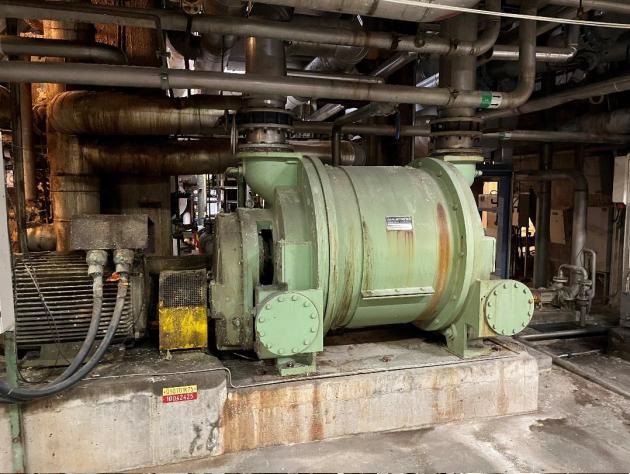

• Vacum pump Ahlström / 1987 904 P2 250 kW, AC 500V
• Vacum pump Ahlström / 1965 CL 3001 160 kW, AC 500V
• Vacum pump Ahlström / 1968 CL 3001160 kW, AC 500V
• Vacum pumpAhlström / 1971CL 3001160 kW, AC 500V
