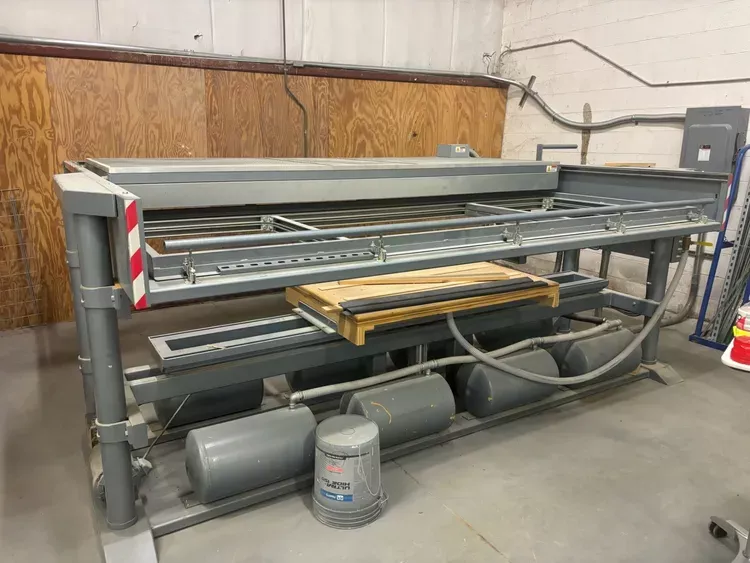

Belovac BV Class C 48” X 120”

Sheet size 48x 120
Depth of draw 22 inches
Fully adjustable material clamping
Tooling Table: 3 1/4" (8cm) Pneumatic drive cylinder 300lb (136kg) seal pressure with
adjustable slotted track for rapid tool mounting
Solid state programmable heat timing unit, coupled with
programmable percentage control unit
Heater Panel: 78000 watts infared radiant panel, with size-down option
Vacuum Pump: High volume, Hi-vacuum pump, Onboard 60 Gallon surge tank
Construction: Post and Beam, Modular Frame System

Recommended for plastics ABS - PVC - PET - Poly styrene- kydex - Poly propylene
Plastic gauges up to 1/4" (.64cm)
Electric Requirements:
Power requirement: 220 three phase 190 amps
overall 112"x146"x60")
