Bending Press 12,000 Ton Max. 12000 Ton
Ref :
1192775-3-GO
Condition :
Used
Manufacturer :
-
Model :
Bending Press 12,000 Ton
Pressure :
Max. 12000 Ton
Year(s) :
2010
Quantity :
1
Location :
Seller or machines location:
AMERICA North (USA-Canada-Mexico)
AMERICA North (USA-Canada-Mexico)
Last check :
20 Sep. 2019

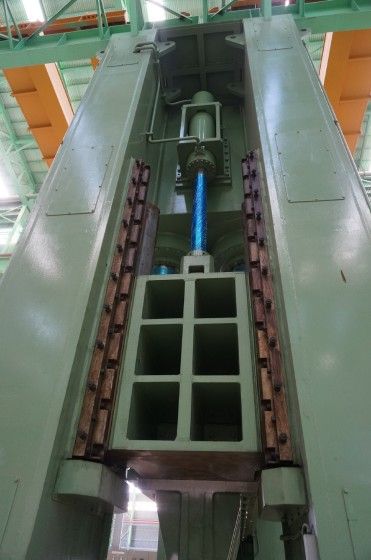

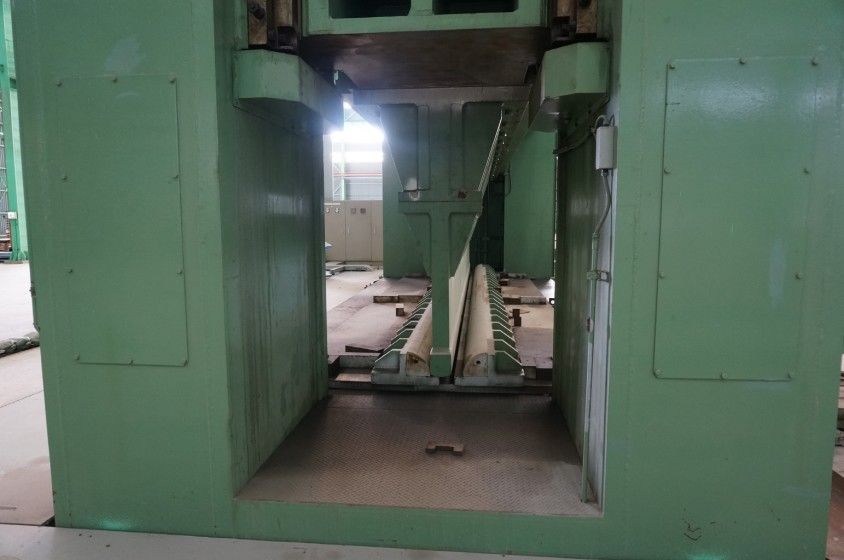

Bending Press 12,000 Ton
Model: ---Year: 2010
Main Capacity 12,000 Ton
Lifting Capacity 120 Ton
Ram Stroke 70.9"
Length of Daylight 70.9"
Working Pressure - Maximum 280 kg/cm²
Descending Speed 4.7 - 5.9 IPS
Pressing Speed 0.12 - 0.2 IPS
Ascending Speed 4.7 - 5.9 IPS
Slide Size 299 x 118"
Table Size 308" x 139"
Main Motor x 2 295 HP
Oil Tank Capacity 7,133 gallon
Noise Degree 85+5 Db(A) at no loud
Operation Method Manual & 1-Cycle Auto
