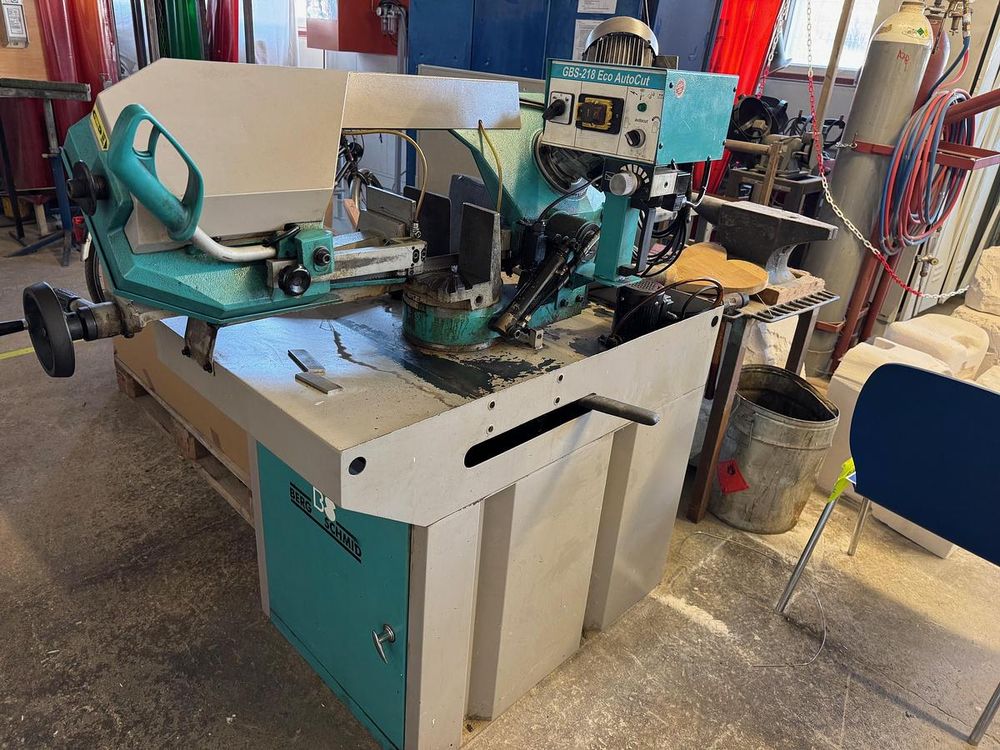

Berg & Schmid GBS-218 Eco Band Saw SemiAutomatic
EUROPE (Western and Northern)
Miter band saw / metal band saw
Used condition
Saw blade length 2455 mm
Saw band dimensions 2455 × 27 × 0.9 mm
Continuously adjustable cutting speed approx. 25–80 m/min
Round bar cutting capacity at 90°: Ø 220 mm
Square/flat cutting capacity at 90°: 210 × 210 mm or 230 × 185 mm
Round bar cutting capacity at 45°: Ø 150 mm
Square/flat cutting capacity at 45°: 150 × 150 mm or 150 × 210 mm
Round bar cutting capacity at 60°: Ø 90 mm
Square/flat cutting capacity at 60°: 90 × 90 mm or 90 × 100 mm
Supply voltage 400 V / 50 Hz
Motor power 1.2 kW
Miter cutting up to 60° left possible
Quick-clamping vise with quick-release device
Carbide saw band guides
Electrical cooling automation
AutoCut system (3-stage feed)
Automatic saw frame lowering with adjustable feed
Fast-gear lowering
Manual operation with brake cylinder function
Dimensions (L×W×H) approx. 1550 × 870 × 1740 mm
Working height approx. 915 mm
Net weight approx. 240 kg
