Bernardo AKPL 1600 x 40 40.0 t

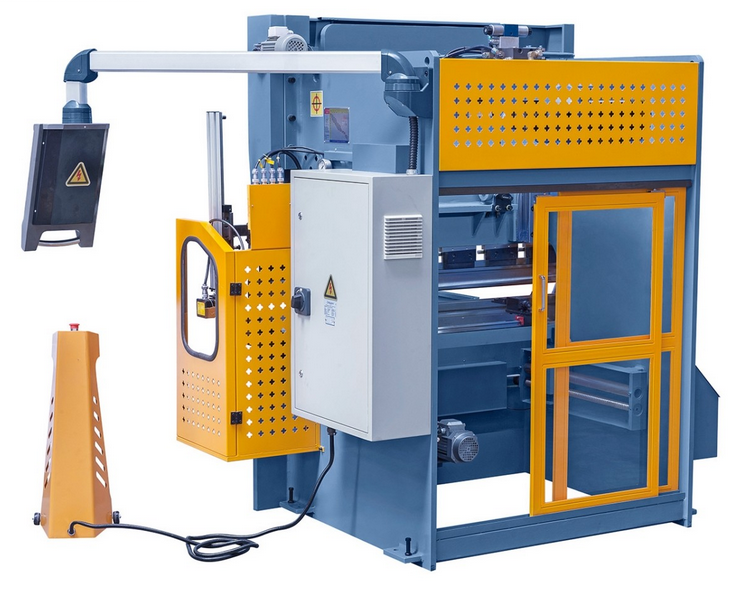

BERNARDO AKPL 1600 x 40
Year of manufacture 2023

- compact hydraulic press brake
- BERNARDO NC control model E21
- swiveling control panel
- electrical adjustment of the backgauge
- Back stop on recirculating ball spindles
- electrical adjustment of the immersion depth
- Laser protection device in front
- Upper deer foot tool - divided
- Tool holder with quick change system
- Universal die block
- side + rear protective device
- 2x front support arms
- movable double foot switch (operation)

pressure: 40.0 t
chamfer lenght: 1600 mm
distance between columns: 1200 mm
column arm: 200 mm
ram stroke speed: 60.0 mm/sec
return speed: 80. mm/sec
work speed: 60.0 mm/sec
work stroke: 100 mm
table height: 760 mm
table width: 150 mm
oil volume: 130 ltr.
voltage: 400 Volt
Control: ESA E21
total power requirement: 4.0 kW
weight: 3030 kg
range L-W-H: 2050 x 1800 x 2030 mm
