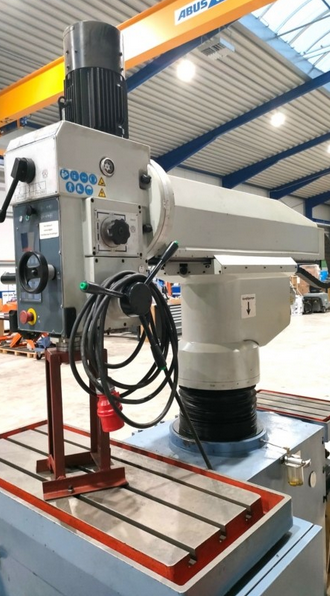

Bernardo SRB 40 NC 2000 rpm

Bore capacity in steel: 40 mm
Arm length: 370–950 mm
Spindle speed range: 50–316 rpm
Spindle speed range (high): 316–2000 rpm
Spindle taper: MK 4
Thread cutting capacity: max. M30
Boring head swivel range: −90° to +90°
Quill stroke: 200 mm
Feed rates: 0.08–0.50 mm/rev
Number of feeds: 6
Distance spindle to table: 390–780 mm
T-slot width: 18 mm
Column diameter: 220 mm
Motor power: 2.2 kW
Machine weight: approx. 2.8 t
Machine dimensions: 2.45 × 1.2 × 2.72 m

Features / Equipment
Electromotive drill head height adjustment
Drill head swivel function
Boom longitudinal movement
Boom horizontal movement
Thread cutting device
Automatic drilling feeds
Large work table
Digital speed display
Digital drilling depth display
Hydraulic drill head clamping
Electronically stepless speed control
Membrane keyboard control
LED machine light
Coolant system
Height-adjustable safety guard
Electromagnetic spindle feed
Electromotive drill head adjustment
