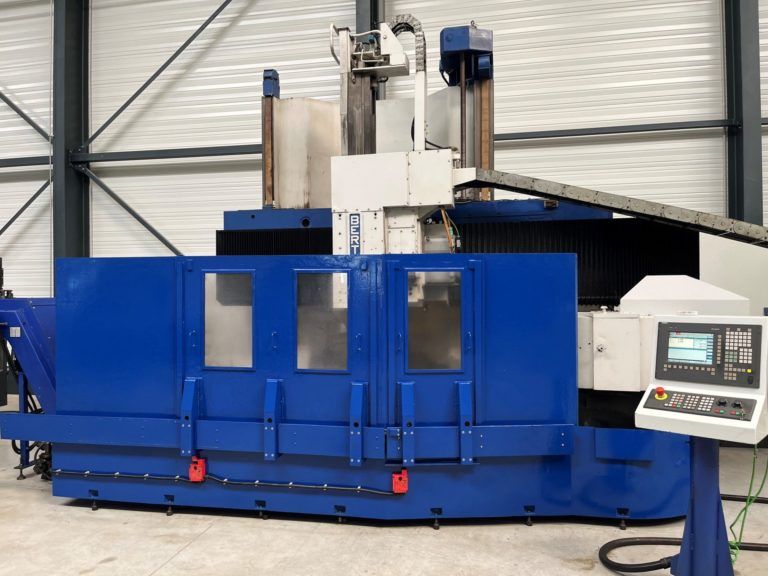

Berthiez TFM 160 3 Axis

Year: 1981 (Retrofitted: 2009)
Control: SIEMENS 840D SL
Vertical cross rail stroke: 1,300 mm
Ram stroke: 1,000 mm
Saddle stroke (right of chuck axis): 1,070 mm
Saddle stroke (left of chuck axis): Approx. 900 mm
Chuck speed: 2–250 RPM
Main motor power: 60 kW
Main motor: SIEMENS AC 37/45 kW
Chuck diameter: 1,600 mm
Maximum turning diameter: 1,880 mm
Maximum turning height: 1,600 mm
Maximum table load: 15 t
Cross rail feed: 400 mm/min
Ram section: 200 × 200 mm
HEIDENHAIN linear scales
Automatic tool changer: 12 positions
Swarf conveyor
Tooling package
