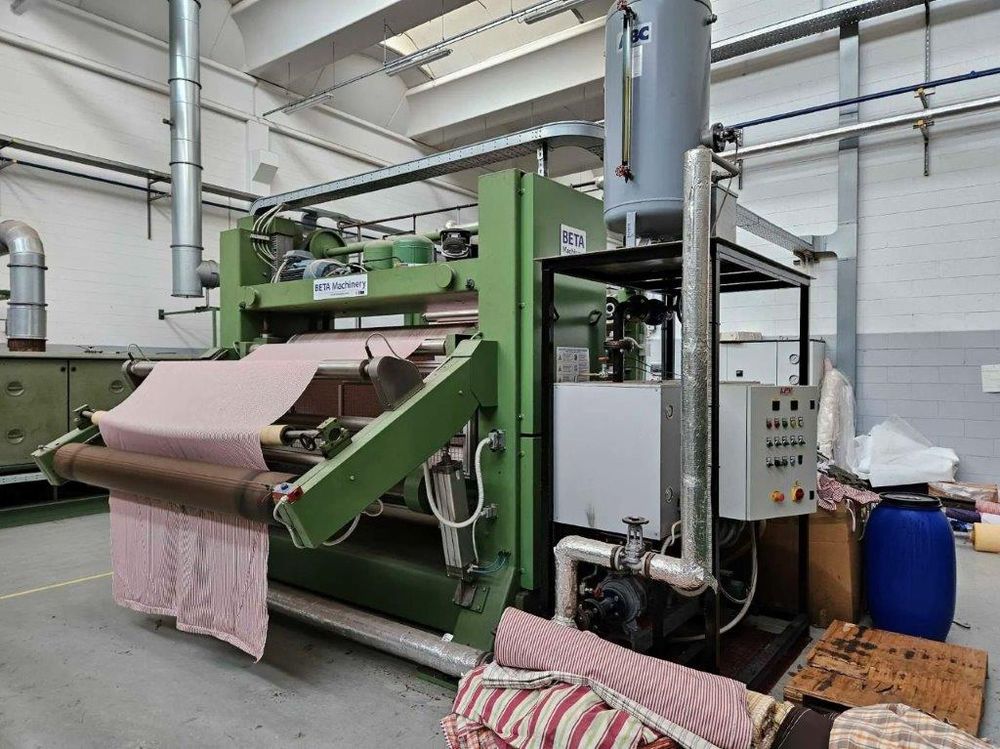

Beta CPC-3 Calender
EUROPE (Western and Northern)
Working height 2100 mm
3-cylinder equip pressure grille
Type Cylinder table 2100mm
Adjustable pressure from 0 to 63 tons max.

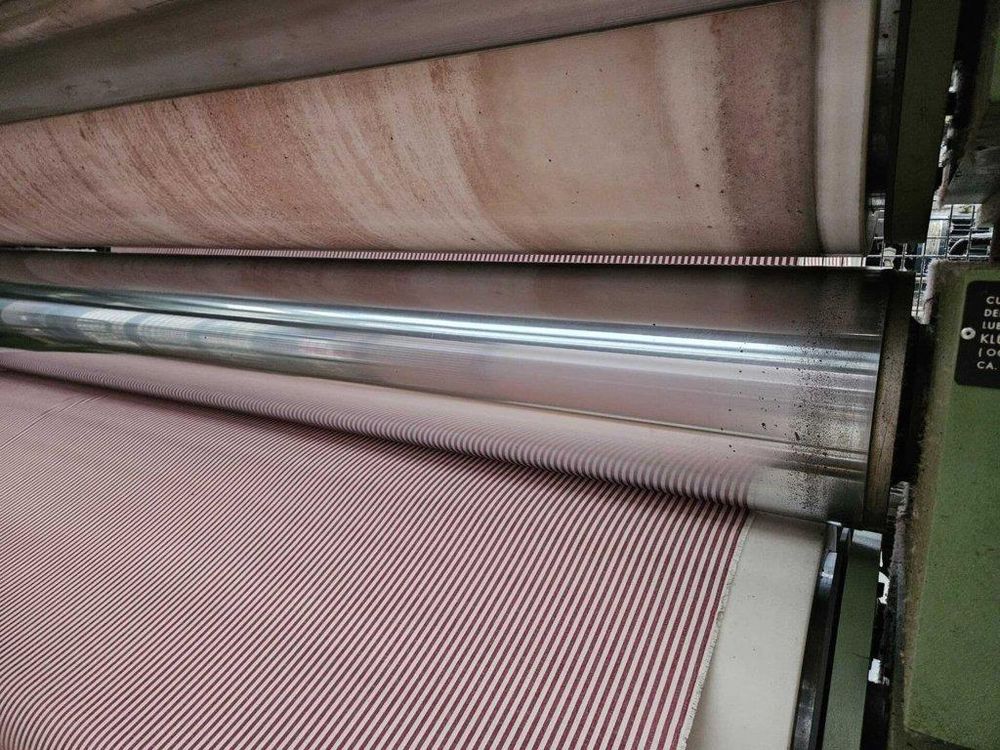

Upper and lower cylinders:
Diameter 600mm, Beta-Roll cylinders in chromed steel and
rectified and covered with nylon sleeve,
kept in rotation for the heating phase by pneumatic clutches.
Central Cylinder :
Diameter 290mm, controlled, in chromed and ground steel,
heatable to 200°C by internal circulation of diathermic oil.
Nylon Cooling:
two perforated and adjustable tubes with two fans each for cooling Nylon cylinders.
Speed: 0÷80 m/min .
Inverter ABB with motor ABB of 22kW.
400 Volts/50 Hz.
Input: Fabric tensioning device, metal detector, seam detector, double widener.
Exit: Tangential Rolling up System dia.1800 mm., Drive with Inverter.
