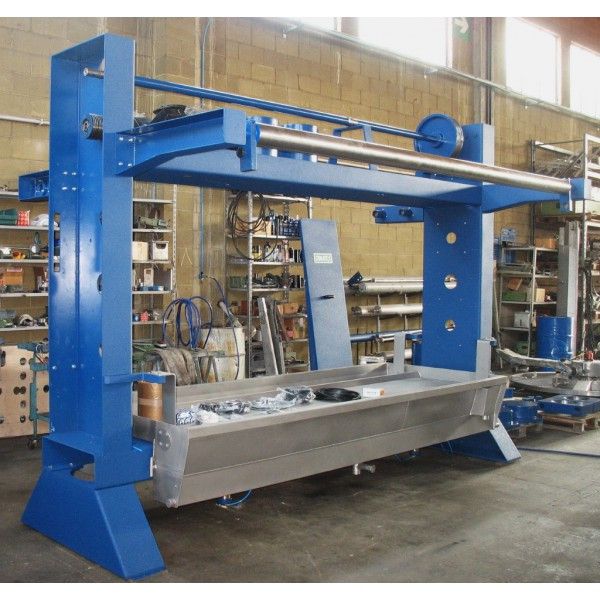

Beta Impregnation/squeezing padder

Ref : 1962510-1-AW
Condition : Used
Manufacturer : Beta
Short Description : Impregnation/squeezing padder
Year(s) : 1997
Quantity : 1
Location : Seller or machines location:
EUROPE (Western and Northern)
Last check : 27 Nov. 2018

TYPE: D- FMC /3
WORKING WIDTH 3.000 MM
ROLLER WIDTH MM. 3200
THREE CYLINDERS

WITH FOLLOWING DISPOSAL:
GUM SYNTHETIC PBC-N
- DIAM.MM.370 GUM SYNTHETIC PBC-N
- DIAM.MM.370 GUM SYNTHETIC PBC-N
- DIAM.MM.370 MAX PRESSURE KG. 26.000
– 26 TONS WITH POSSIBILITY TO ADJUST PRESSURE INDEPENDENTLY AMONG THE 1ST AND 2ND SQUEEZING
(IN ORDER TO IMPREGNATE WITH CHEMICAL AFTER THE SQUEEZING)
FOR A WET-ON-WET TREATMENT GUMMED CYLINDERS
WITH 85°SHORA HARDNESS STAINLESS STEEL AISI 304 L
DOUBLE IMPREGNATING TANK WITH DOUBLE WALL TO HEAT OR COOL THE CHEMICALS WITH SEPARATOR TO NOT DILUITE
THE FINISHING PRODUCT WITH THE HYDROEXTRACTED WATER
WITH INCORPORATED ATLAS-COPCO AIR COMPRESSOR GROUP AND ITS ONE TANK TO KEEP PRESSURE
CONSTANT WITHOUT PRESSURE FAIL 2 X DRIVEN SPREADERS CYLINDERS
(ONE AT THE ENTRY AND OTHER AT THE EXIT) TO ELIMINATE GRIMPS EXIT WITH SYNCHRONIZATION GROUP
(SUITABLE FOR KNIT OR DELICATE FABRICS)
IN ORDER TO INSTALL MACHINE IN LINE WITH OTHERS MOTORIZATION A/C MOTOR
WITH FREQUENCY INVERTER DRIVE - V.380 – 3PH +N. - 50 HZ.
TOTALLY RE-NEWED WITH BRAND NEW ELECTRIC PANEL BOARD
WITH FREQUENCY INVERTER AND BRAND NEW A/C MOTOR
