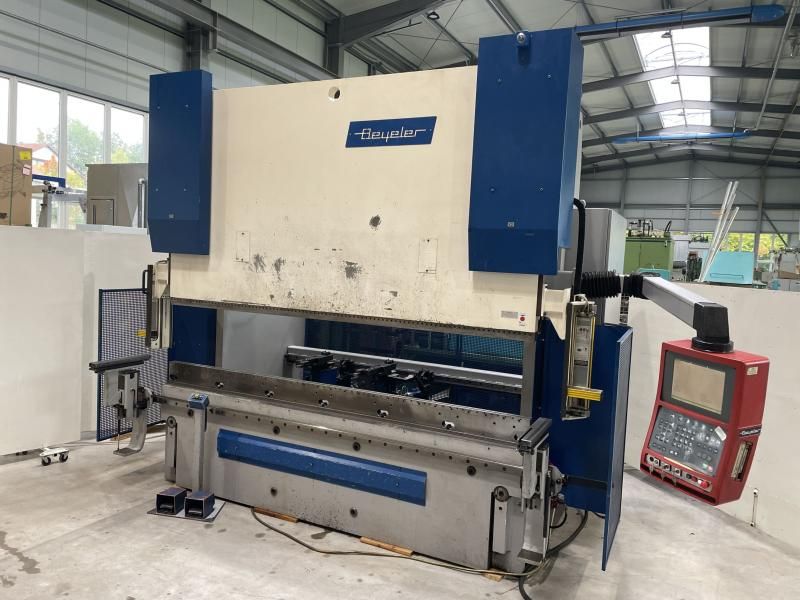

Beyeler BYSTRONIC PR 8 (2500 kN x 3100 mm) 250 t

Press force: 250 t
Working length: 3100 mm
Stroke: 365 mm
Throat depth: 410 mm
Distance between side frames: 2750 mm
Table width: 100 mm
Table width with extension: 200 mm
Table height: 840 mm
Backgauge X-axis travel: 620 mm
Backgauge R-axis travel: 240 mm
Approach speed: 200 mm/s
Working speed: 1–10 mm/s
Y-axis rapid speed: 200 mm/s
Y-axis working speed: 1–10 mm/s
Y-axis return speed: 135 mm/s

CNC control: Cybelec DNC 1200 PS/A
Number of CNC axes: 8
Axes configuration: X1
Axes configuration: X2
Axes configuration: R1
Axes configuration: R2
Axes configuration: Z1
Axes configuration: Z2
Servo-controlled ram with measuring system Y1
Servo-controlled ram with measuring system Y2
Safety light curtain
Foot pedal control
Two-hand control
Hydraulic upper tool clamping
Lower tool holder height: 160 mm
Lower tool holder width: 60 mm
Lower tool holder slot size: 14 × 23 mm

Oil capacity: approx. 400 L
Motor power: 18.5 kW
Connected load: approx. 25 kW

Machine dimensions: 4450 × 2500 × 3400 mm
Transport height: 3360 mm
Machine weight: 17000 kg
