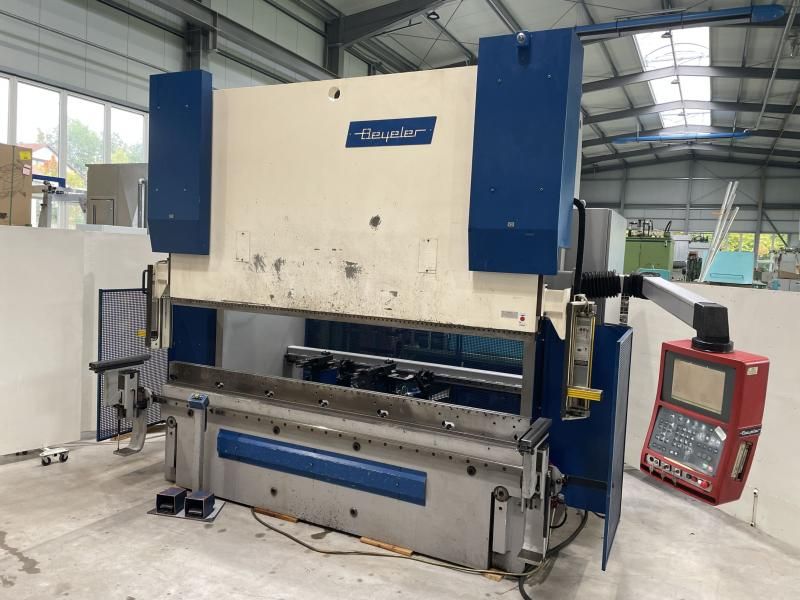

Beyeler BYSTRONIC PR 8 (2500 kN x 3100 mm) 250 ton

Press Force: 250 ton
Working Length: 3100 mm
Stroke: 365 mm
Throat Depth: 410 mm
Distance Between Frames: 2750 mm
Table Width: 100 mm
Table Width (with extension): 200 mm
Table Height: 840 mm
Backgauge X-Axis Travel: 620 mm
Backgauge R-Axis Travel: 240 mm
Approach Speed: 200 mm/s
Working Speed: 1–10 mm/s
Y-Axis Rapid Traverse: 200 mm/s
Y-Axis Working Speed: 1–10 mm/s
Y-Axis Return Speed: 135 mm/s
Oil Capacity: 400 L
Motor Power: 18.5 kW
Total Power Requirement: 25 kW
Power Supply: 400 V / 50 Hz / 50 A
Control: Cybelec DNC 1200 PS/A
CNC Axes: X1, X2, R1, R2, Z1, Z2, Y1, Y2
Programmable Backgauge Fingers (2 pcs)
Backgauge with 3 Stop Positions (max. 1080 mm)
Servo-Controlled Ram with Measuring System Y1/Y2
Safety Light Curtain FIESSLER AKAS
Foot Pedal Control
Two-Hand Control Panel
Hydraulic Upper Tool Clamping (TRUMPF System, 20 mm slot)
Lower Tool Holder: 160 x 60 mm
Lower Tool Slot: 14 x 23 mm
TRUMPF Tooling System
Machine Dimensions (L x W x H): 4450 x 2500 x 3400 mm
Transport Height: 3360 mm
Weight: 17000 kg
