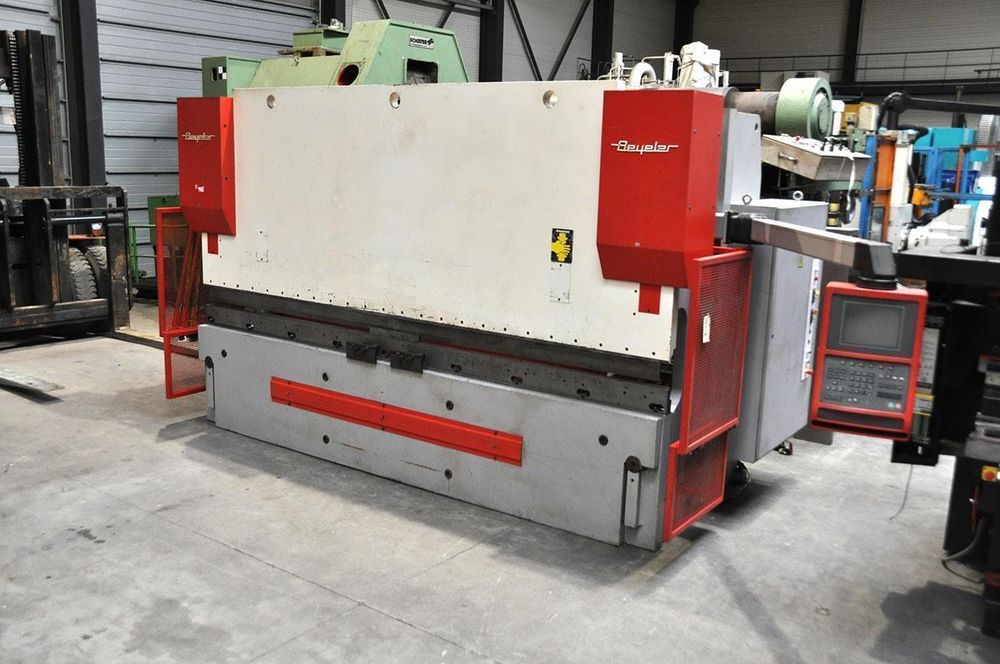

Beyeler BYSTRONIC PR6 200 ton x 4100 mm CNC
Ref :
2734699-3-CP
Condition :
Used
Manufacturer :
Beyeler
Model :
BYSTRONIC PR6
Pressure :
200 ton x 4100 mm CNC
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Press force: 200 ton
Bending length: 4100 mm
Backgauge: CNC
Control: Cybelec
Passage between uprights: 3750 mm
Max stroke: 215 mm
Max distance table to ram: 342 mm (472 mm with Amada tooling)
Throat depth: 400 mm
Locking speed: 200 mm/sec
Working speed: 10 mm/sec
Electric motor power: 15 kW
Height: 2690 mm
Weight: 15.6 ton
Hydraulic clamping: Lower
Hydraulic crowning: Yes
Axes: Y1 / Y2 / X / Z1 / Z2 / V
Tooling system: Beyeler system R
