Beyeler EURO IV 60 x 2050 60.0 t

Pressure: 60.0 t
Chamfer length: 2050 mm
Distance between columns: 1550 mm
Column arm: 255 mm
Stroke: 165 mm
Daylight: 360 mm
Table height: 890 mm
Working feed: 7.0 mm/sec
Return speed: 85.0 mm/sec
Back stop - adjustable: max. 500 mm
Control: EURO IV
Oil volume: 100 ltr.
Total power requirement: 5.5 kW
Weight: 4600 kg
Range L-W-H: 2700 x 1450 x 2400 mm

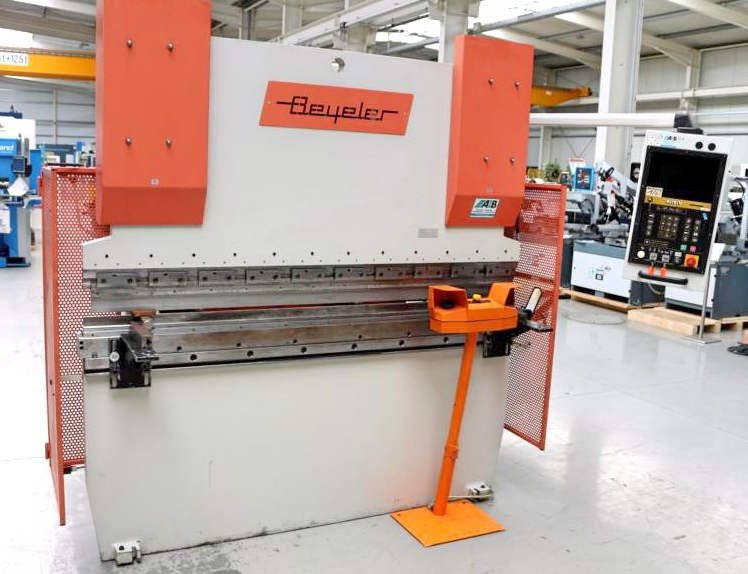

CNC electro-hydraulic press brake
CNC CYBELEC EURO IV control unit
High-resolution screen
Clear, easy-to-read menus in the operator's language
Tool & product library
Front right control panel, pivoting
CNC-controlled axes: Y1 + Y2 + X + R axes
CNC electro-motorized backgauge (X axis)
Max. travel 500 mm
Travel speed 180 mm/sec.
CNC electro-motorized height adjustment (R axis)
Max. travel 130 mm
Travel speed 50 mm/sec.
3 manually adjustable stop fingers
BEYELER electro-hydraulic top tool clamping
Includes adapter from BEYELER to AMADA tools
1 bending tool set
Manual table crowning - including analog value scale
Adjustment via hand crank
Includes adapter rail for BEYELER tools
2 front material/sheet support arms
1 freely movable two-hand control unit
1 freely movable foot switch
Side guards (2 hinged doors)
Rear guards (1 hinged door)
Operating instructions for machine and control system
