Beyeler PRE 100 x 2550 Hydraulic Press Brake 100 t

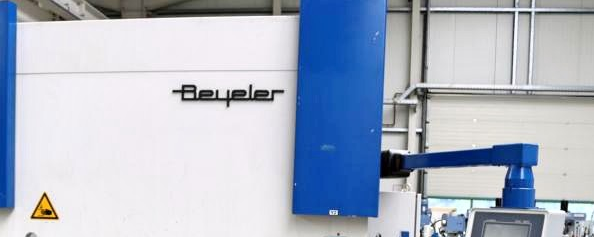

BEYELER PRE 100 x 2550 Hydraulic Press Brake
1995

Pressure: 100 t
Chamfer length: 2550 mm
Distance between columns: 2050 mm
Column arm: 350 mm
Stroke: 315 mm
Daylight: 585/435 mm
Table height: 925 mm
Adjustment speed: 110 mm/sec
Working feed: 10.0 mm/sec
Return speed: 140 mm/sec
Back stop adjustment: 500 mm
Traversing speed: 180 mm/sec
Control: DNC 880S
Oil volume: 100 ltr
Power requirement: 7.5 kW
Weight: 4600 kg
Length: 2700 mm
Width: 1450 mm
Height: 2400 mm

CNC electro-hydraulic press brake
CYBELEC DNC 880S control unit
High-resolution screen
Multi-language menus
Tool and product library
2D bending sequence display
Collision detection system
Pivoting control panel
CNC-controlled Y1/Y2/X/R axes
CNC crowning system
Electro-motorized backgauge
4 adjustable stop fingers
130 mm height adjustment range
Electro-hydraulic upper tool clamping
Manual lower tool clamping
Tool system "R"
Electro-motorized oil cooler
2 material support arms
Two-hand control
Foot switch
Side protective grille
Rear protective grille
Original operating instructions
