BFB/IMA MS 500 A Bundling machine + tunnel
EUROPE (Western and Northern)

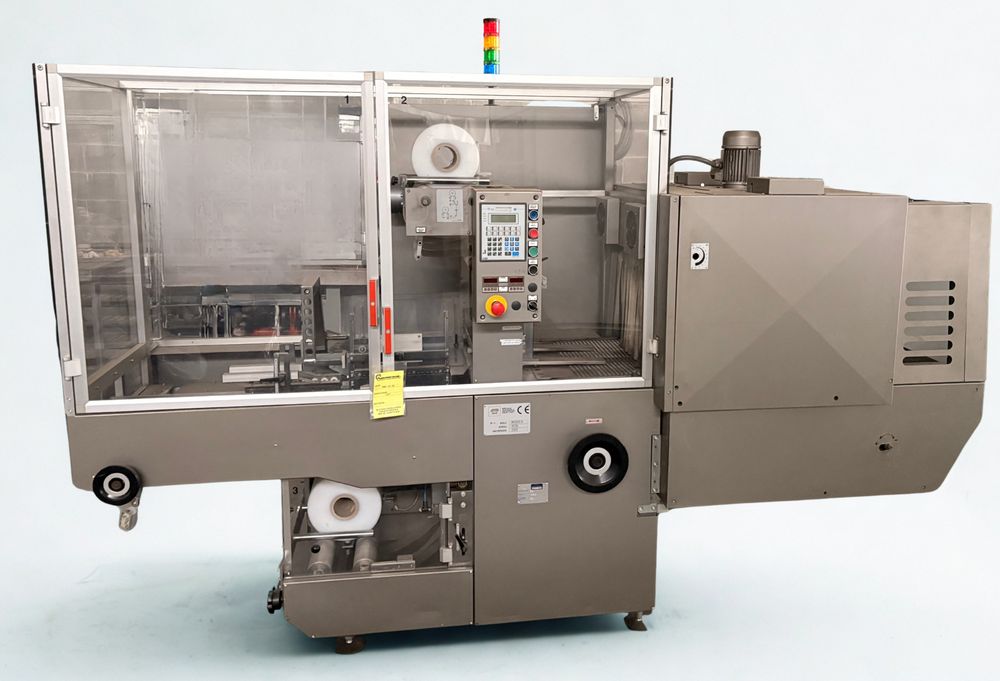

The BFB MS500 A is an extremely versatile and compact automatic bundler, designed by the IMA group for grouping and wrapping products using stretch or heat-shrink film (PE). The machine stands out for its ergonomic structure, which facilitates operator access and speeds up format changeover operations, making it ideal for dynamic production flows in the pharmaceutical and cosmetic sectors. The operating system features in-line product feeding via a conveyor belt, grouping into the desired configuration, and subsequent wrapping through a dual-spool film system with transverse sealing; the resulting bundle can then be stabilized through an integrated heat-shrink tunnel to ensure secure and professional packaging.
Power supply: 3x400V + T, 50Hz.
Installed power: 15.5 kW.
Pneumatic pressure: 6 bar (consumption 160 Nl/min).
Overall dimensions: 2950 x 1300 x 1900 mm (approx.).
Weight: 800 kg.
Product width (A): 15 – 330 mm.
Product height (B): 12 – 100 mm.
Product length (C): 50 – 300 mm.
Bundle width (D): 60 – 330 mm.
Bundle height (E): 30 – 200 mm.
Bundle length (F): 50 – 300 mm.
Maximum film width (H): 500 mm.
