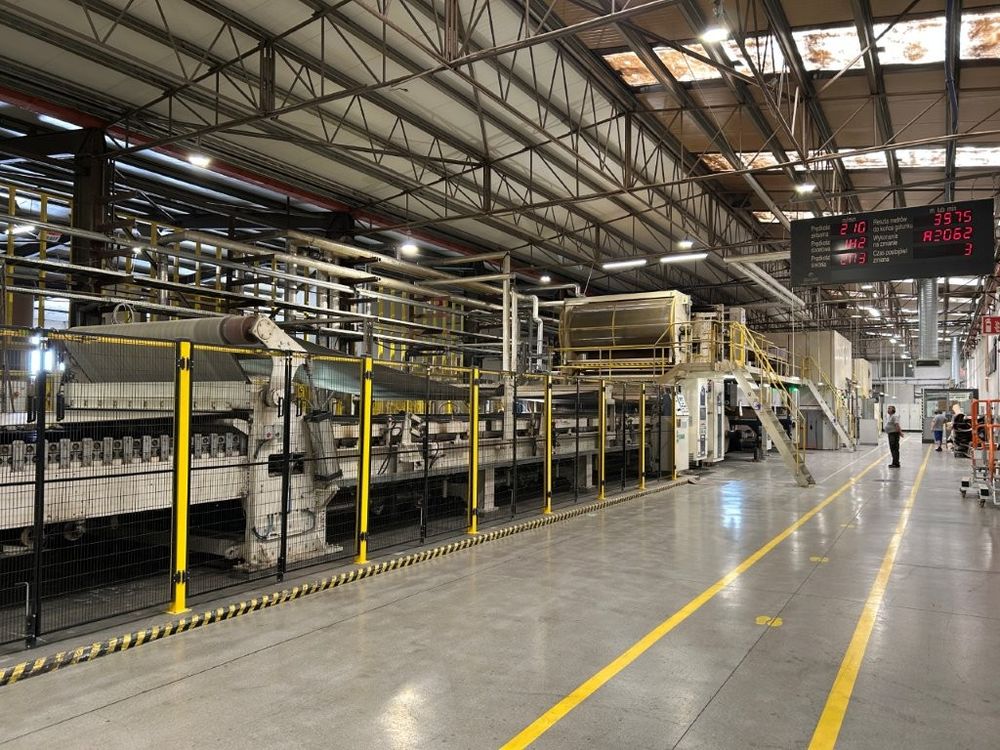

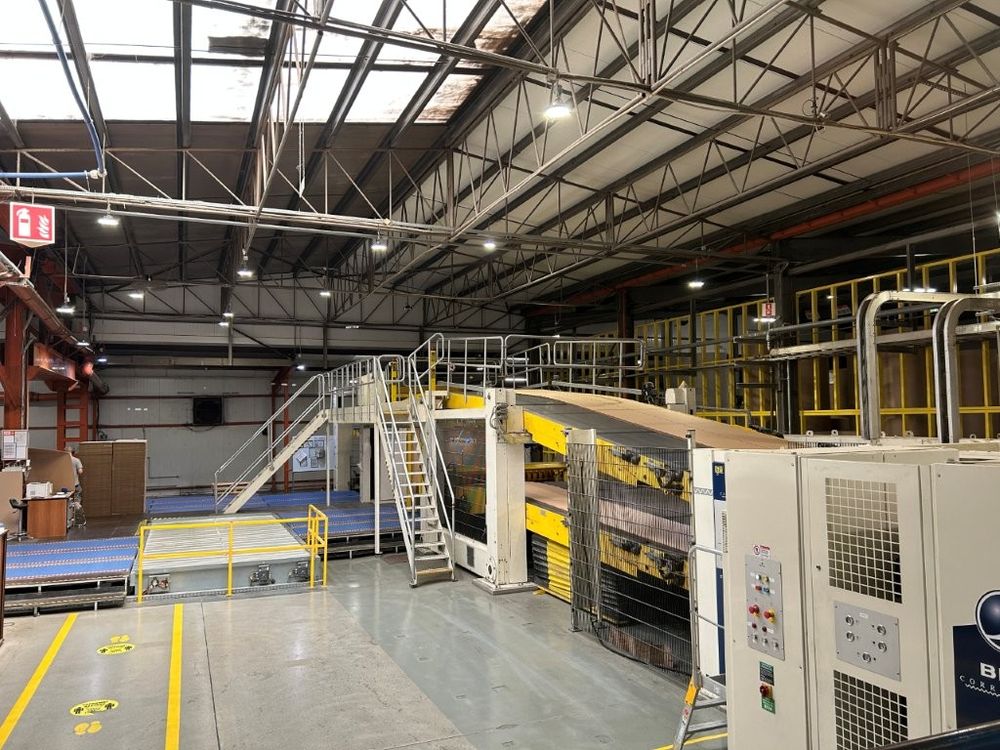

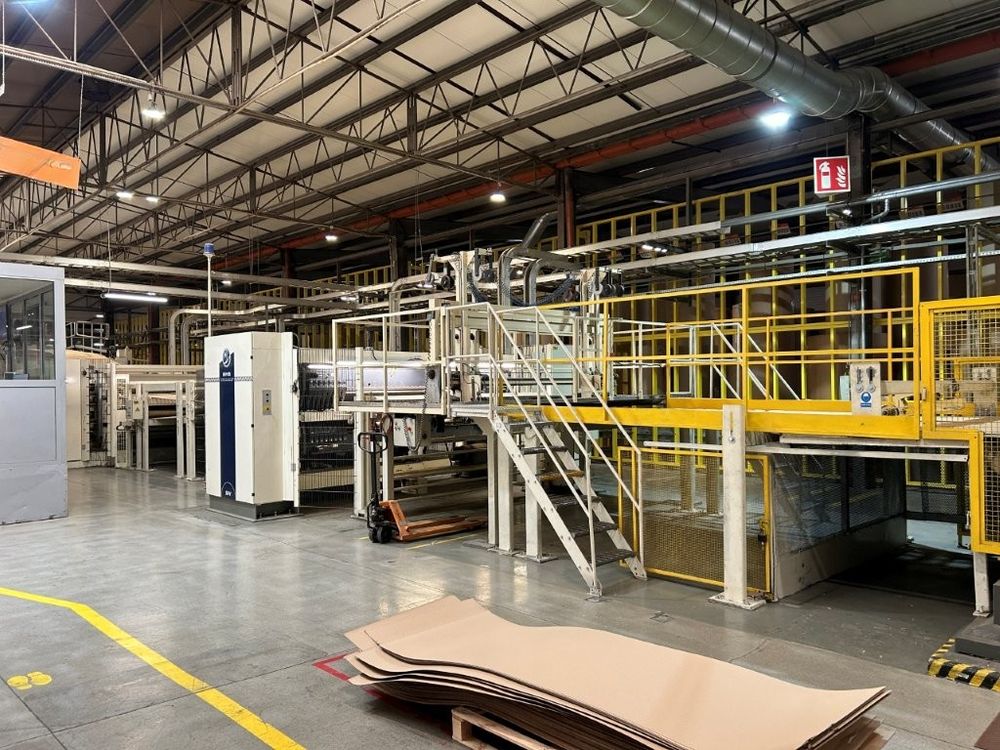

Agnati, BHS Corrugator 3600 x 500 mm

Speed : 300 m/min
Max. Size : 2400 x 150 mm
Min. Size : 3600 x 500 mm
Condition : Good

Machine Group: Corrugator
Supplier: Mix
Machine Type: Corrugator
Comment: BHS / Agnati / Fuma
Manufacturing Year: 2004
Installation Year: 2004
Last Upgrade: 2021

Stacker Manufacturer: BHS
Max. Sheet Width: 2400 mm
Min. Sheet Width: 150 mm
Max. Sheet Length: 3600 mm
Min. Sheet Length: 500 mm
Max Mechanical Speed: 300 lm/m
Reference Speed for OEE Calculation: 18000
Corrugator Type: RHDPG
Last upgrade 2021

Reel Stand Liner 1
Manufacturer: Peters
Model: 117
Year: 1983
Width: 2500 mm

Splicer Liner 1
Manufacturer: FUMA
Model: BA 300
Year: 2015
Width: 2500 mm
Max Splice Speed: 300 lm/min

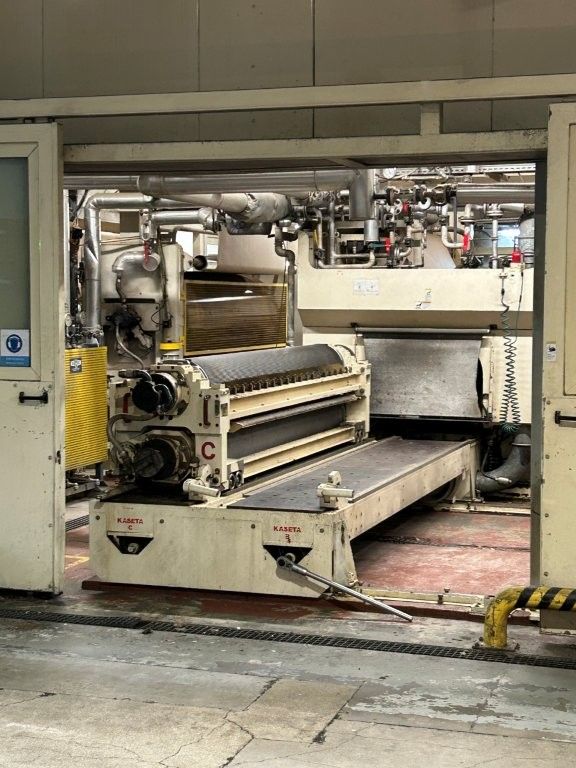

Single Facer 1
Manufacturer: BHS
Model: AF-P
Year: 2013
Width: 2500 mm
Max Speed: 300 lm/min
Flutes Produced: B/C

Reel Stand Fluting 1
Manufacturer: Peters
Model: 117
Year: 1983
Width: 2500 mm

Splicer Fluting 1
Manufacturer: FUMA
Model: BA 300
Year: 2015
Width: 2500 mm
Max Splice Speed: 350 lm/min

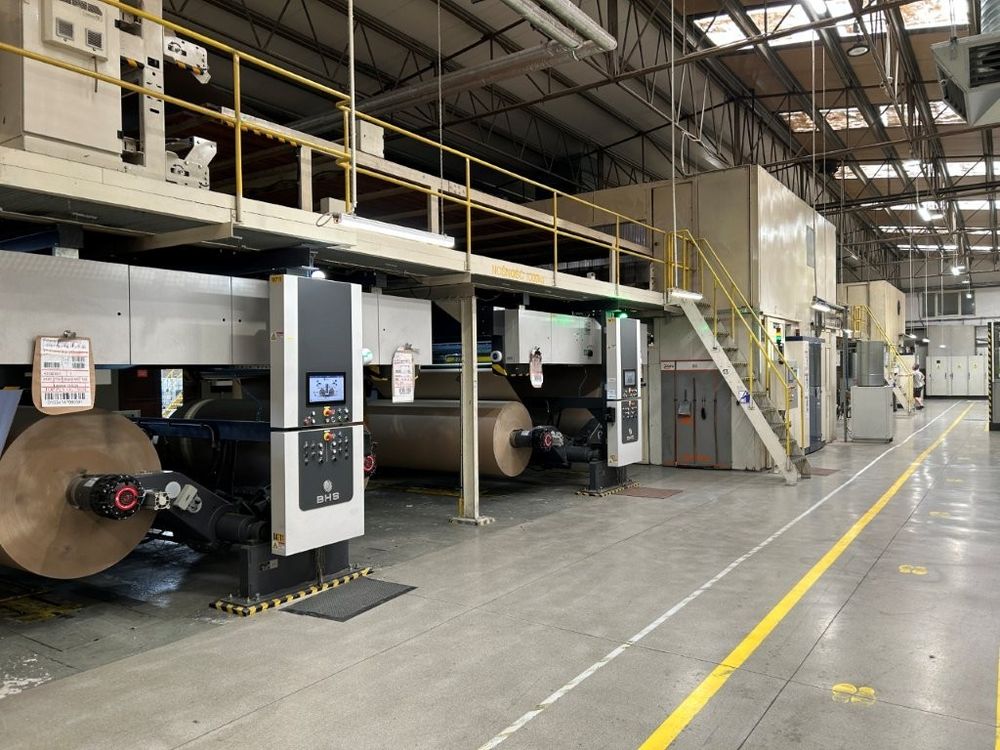

Reel Stand Liner 2
Manufacturer: BHS
Model: RS-M
Year: 2022
Width: 2500 mm

Splicer Liner 2
Manufacturer: BHS
Model: SPS
Year: 2022
Width: 2500 mm
Max Splice Speed: 350 lm/min

Single Facer 2
Manufacturer: BHS
Model: AF-P
Year: 2016
Width: 2500 mm
Max Speed: 350 lm/min
Flutes Produced: B/E

Reel Stand Fluting 2
Manufacturer: BHS
Model: RS-M
Year: 2022
Width: 2500 mm

Splicer Fluting 2
Manufacturer: BHS
Model: SPS
Year: 2022
Width: 2500 mm
Max Splice Speed: 350 lm/min

Web Guide
Manufacturer: BHS
Model: Webtrol
Year: 2018
Width: 2500 mm
Max Speed: 350 lm/min

Web Brake
Manufacturer: BHS
Model: BB
Year: 2018
Width: 2500 mm
Max Speed: 350 lm/min

Reel Stand Outside Liner
Manufacturer: BHS
Model: RS-M
Year: 2022
Width: 2500 mm

Splicer Outside Liner
Manufacturer: BHS
Model: SPS
Year: 2022
Width: 2500 mm
Max Splice Speed: 350 lm/min

Multiple Preheater
Manufacturer: BHS
Model: PH-M/3
Year: 2018
Width: 2500 mm
Max Speed: 350 lm/min

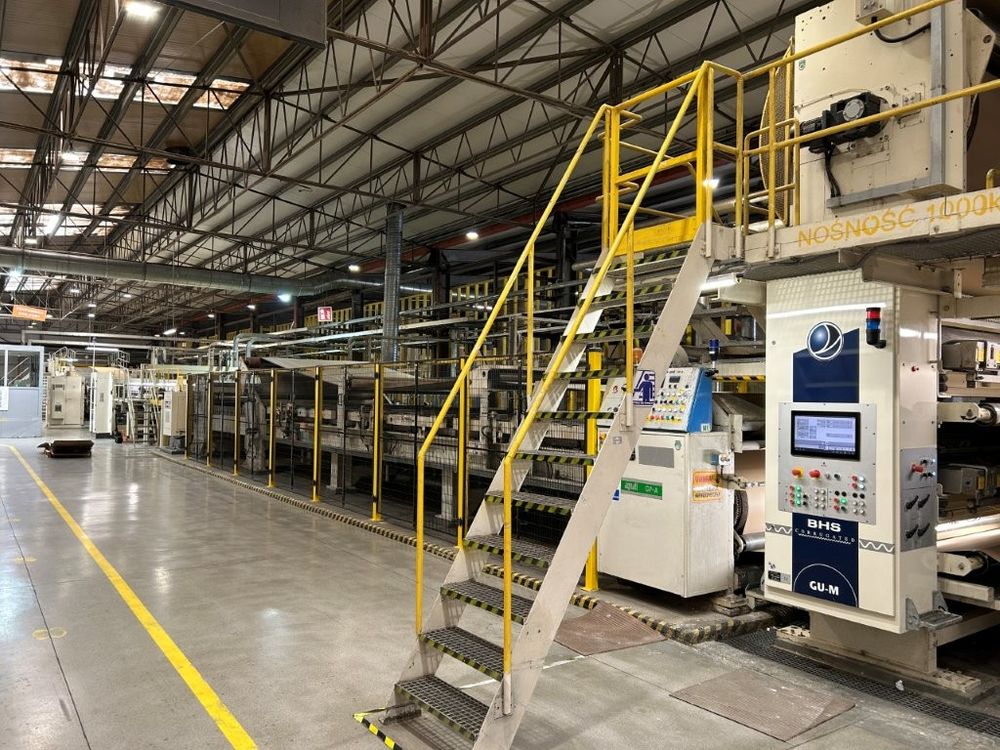

Glue Unit
Manufacturer: BHS
Model: GU-M/2
Year: 2018
Width: 2500 mm
Max Speed: 350 lm/min

Double Facer
Manufacturer: Agnati
Model: GPA 3+1
Year: 1998
Width: 2500 mm
Max Speed: 300 lm/min
Belt Supplier / Type: Brico
Steam Sections: 3 steam / 3 shoes

Rotary Shear
Manufacturer: BHS
Model: KQM
Year: 1994 / 2008
Width: 2500 mm
Max Speed: 220 lm/min
Tear Tape Applicator
Max Number of Tapes: 4

Slitter Scorer
Manufacturer: BHS
Model: SR-V
Year: 2016
Width: 2500 mm
Max Speed: 350 lm/min
Tandem: No
Max Number of Outs: 6
Disc Cut: Yes
Old Witron Control: Yes

Cut to Mark System
Manufacturer: BHS
Model: PM-S
Year: 2016
Width: 2500 mm
Max Speed: 350 lm/min
Position: Bottom

Cut-off Knife
Manufacturer: BHS
Model: HQ-M
Year: 2016
Width: 2500 mm
Max Speed: 350 lm/min
Number of Knives: 2

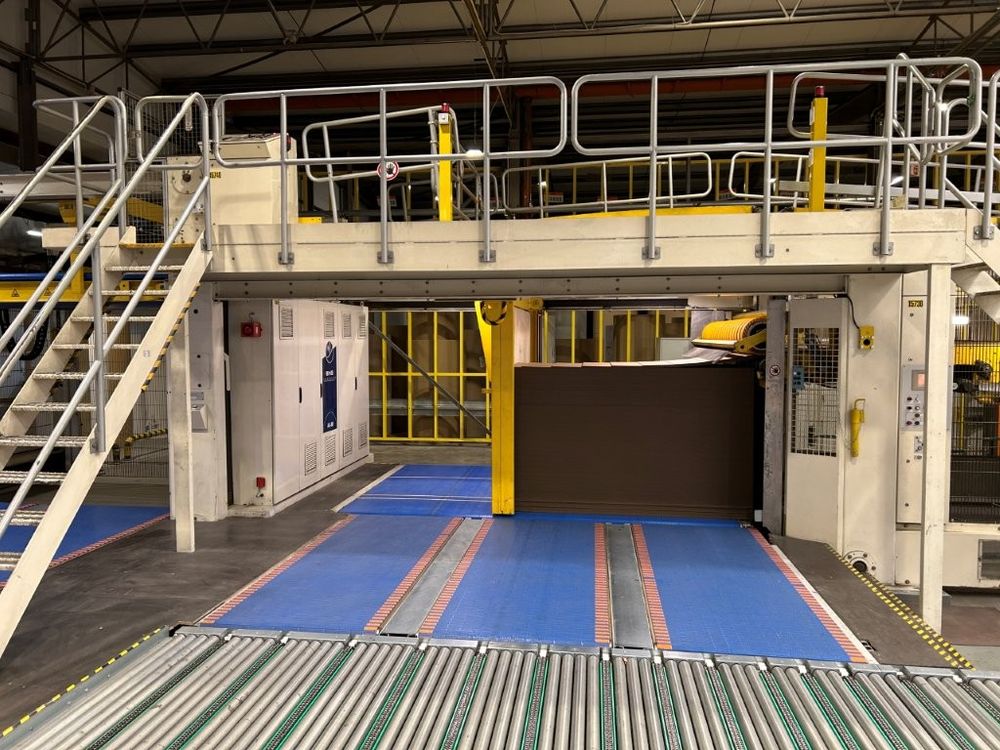

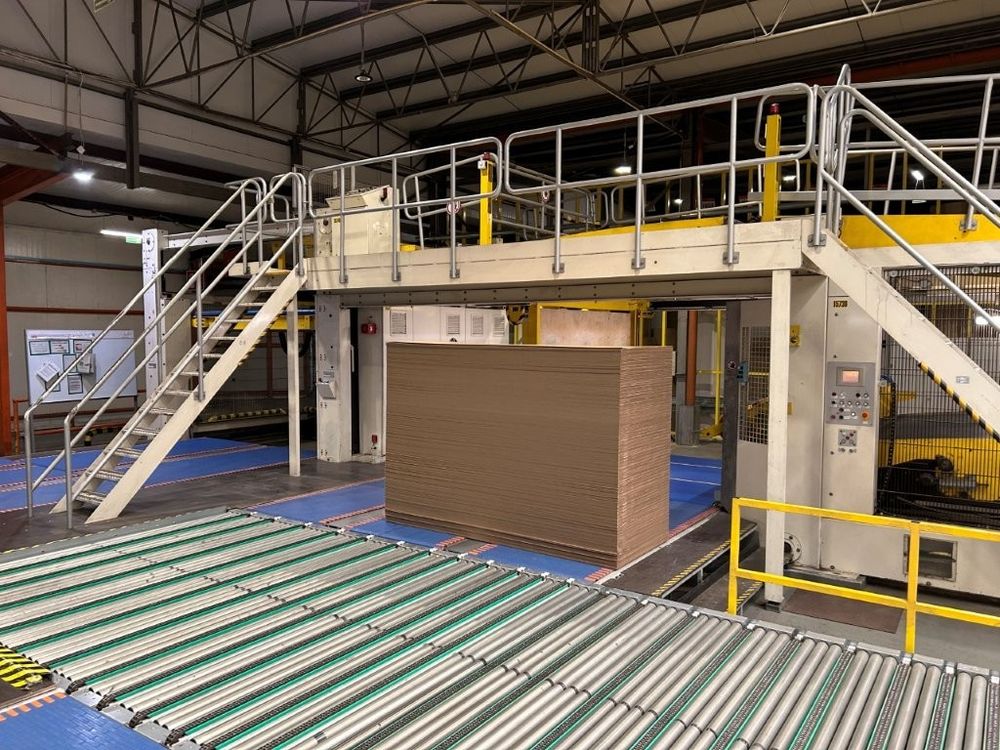

Stacker
Manufacturer: BHS
Model: AS-M
Year: 2004
Width: 2500 mm
Max Speed: 350 lm/min
Station 1 Length: 3500 mm
Station 2 Length: 3500 mm

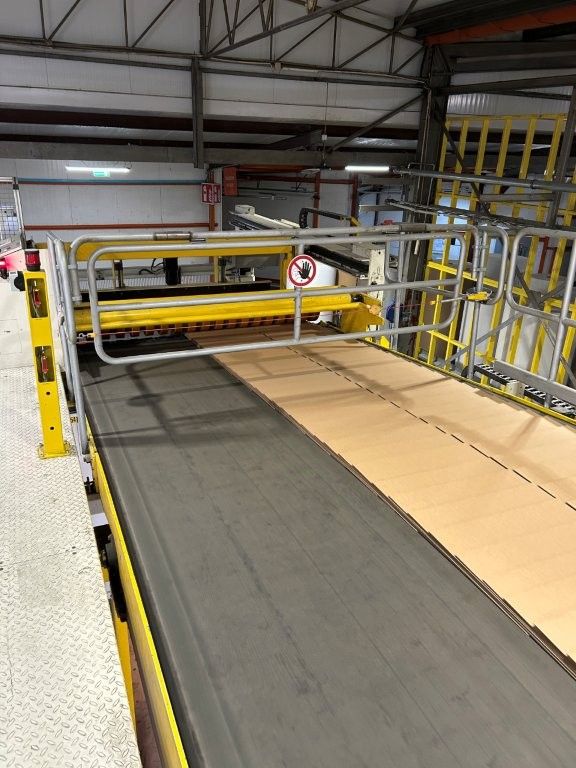

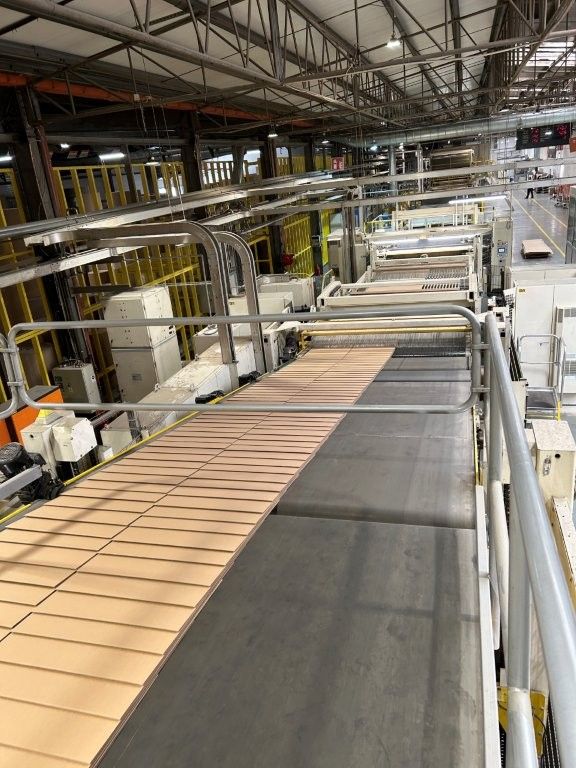

Take Off Conveyors
Manufacturer: Duecker
Year: 2013 / 2022
Type: Plastic belt
Discharge: Sleeves + pallets

Starch Kitchen
Manufacturer: SRP
Model: GK-1200 with liquid borax
Year: 2015
Operation: Auto
Silo Capacity: 80 m³
Mixing Method: Stein Hall
Starch Type: Corn modifie
