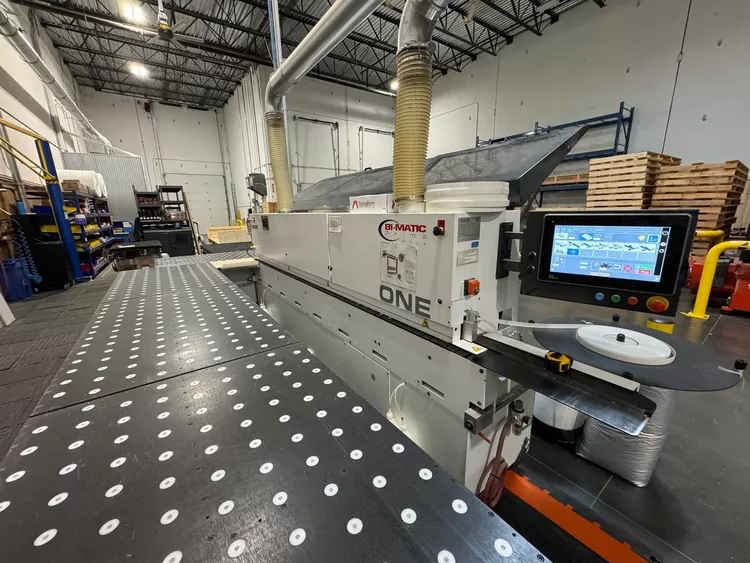

Bi-Matic Prima Plus 7.3 ONE

Single-Side Edge Bander
Condition Used

Electrical:
Voltage 230 volts
Phase 3-phase

General :
CNC Yes

Features:
12" touch screen control capable of storing machine settings
Automatic machine adjustments to certain units by servo and pneumatic controls
Auto setting infeed fence according to the edge thickness being applied
Narrow part insertion device to ensure panels are fed squarely into the machine
1.5 litre Teflon coated glue pot with quick heating time of 5-6 minutes
Quick change system allows for fast exchange of the glue pot when using different color glues or different glues (when extra glue pot(s) are ordered)
Screw Glue Roller system allows for proper glue delivery of higher viscosity glues like Polypropylene resulting in virtually invisible glue joints
Dual motor end trim with pneumatic inclination from the control system
High frequency top & bottom edge trimming units with servo setting
Counter rotating diamond pre-milling cutters to ensure an optimum edge for high quality joints
Corner rounding unit for finishing the ends of the panel with pneumatic 2-position dual radius selection from the control panel
Glue scraping system to remove any excess glue to eliminate any re-working of the panel
Buffing unit to polish edges after machining
Nesting rollers for proper machining of doors with hinge holes already process
Riepe LPZ/II anti-adhesive spray system prior to pre-milling unit
Riepe LP163/93 polishing system before buffing unit to promote a vibrant edge

Installed Power: 10 kW
Edge Thickness: 0.4 - 3 mm
Min. Panel Length: 90/300 mm
Min. Panel Length w/ Rounding Unit: 130 mm
Min. Panel Width: 90/100 mm
Min. Panel Width w/ Rounding Unit: 300 mm
Max. Panel Thickness w/ Pre-milling: 50 mm
Max Panel Thickness w/ Rounding Unit: 50 mm
Max. Panel Thickness w/o Pre-milling or Rounding: 50 mm
Min. Panel Thickness: 10/12 mm
Working Speed: 9 m/min
Dust Outlets: Nr. 02, 150 mm diameter
Pneumatic Operating Pressure: 6 bar
Footprint: 4150 mm length x 700 mm width x 1400 mm height
Machine Weight: 1280 kg (2821 lbs)
Hours: 2500 hrs (approx.)
