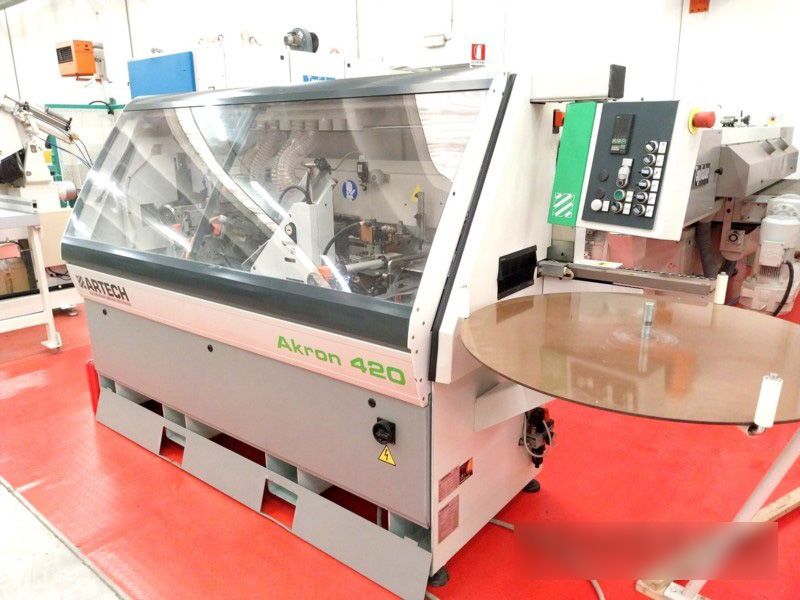

Biesse AKRON 420

Automatic edgebander for wood, Pvc, Abs, and melamine edges for carpentry,
furniture, kitchens, custom-made furnishings, panels and various - CE Standard

Technical data:
Panel height 10-60 mm
Min/max edge thickness 0,4-6 mm
Minimum panel length 140 mm
Minimum panel width 50 mm
Track feed speed 12 mt/min
Protective cabin

Composition:
Gluing unit: Glue tank capacity 2 kg - Shear for 3 mm roll edges
End tcutting unit: n° 2 independent high-frequency motors 0,5 Kw - Inclination from 0 to 15°
Tilting fine finishing unit: 2 independent high-frequency motors 0,65 Kw , tiltable from 0 to 25°
Brush unit: Brush diameter mm 150 - Motors Kw 0,37 each
Suction port diameter mm 150
Compressed air 7 bar
Overall dimensions mm 3200 x 1000 x 1500 h
Weight kg 900
