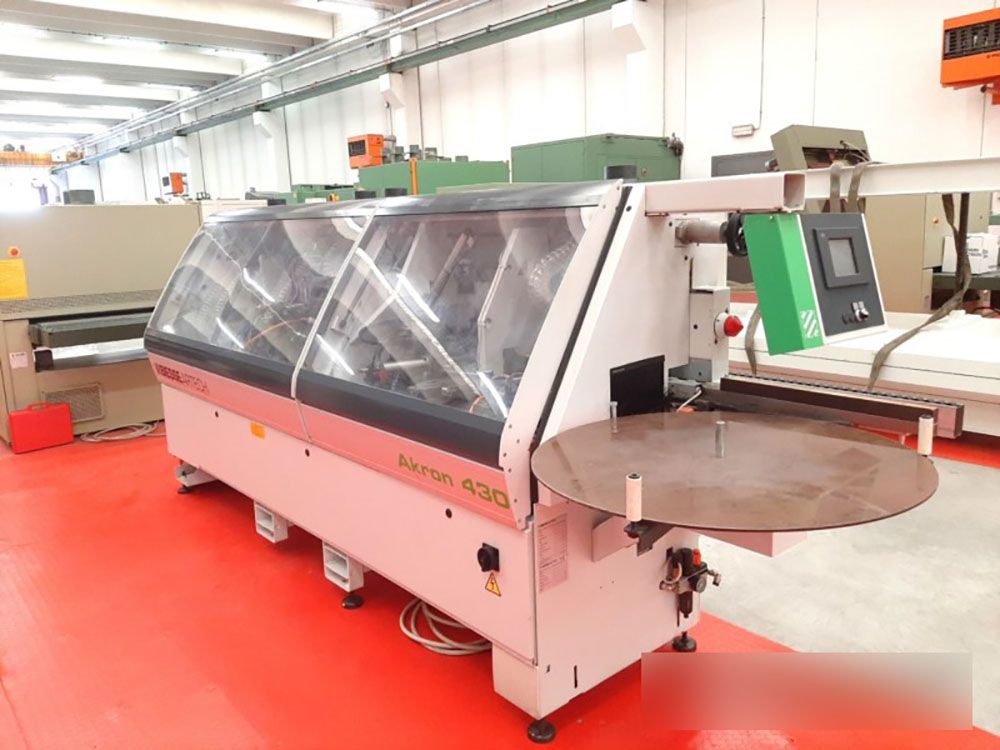

Biesse AKRON 430/AT

Automatic edge bander with grinding unit for edgebanding solid wood, chipboard, veneer, Pvc, Abs and melamine panels - CE Standard
Technical data:
Panel height mm 10/60
Edge thickness max mm 10
Panel length min mm 140
Panel width min mm 85
Belt feed speed 12 mt/min
Electronic control panel with USB port for data loading - Sintra software

Grinding unit for panel grinding -N° 2 motors each Hp 2,4 rpm 12000
Tools diameter mm 80 F30 H75
Slide copying devices
N° 2 suction nozzles diameter mm 60

Gluing unit:
Interchangeable glue pot
Glue pot capacity kg 2
Glue spreader roller diameter mm 25
Pressure roller conveyor large roller diameter 100 mm
Pressure roller conveyor small rollers diameter mm 80

End cutting unit: for cutting excess front and rear edges
N° 2 motors each Hp 1,07 12000 rpm
Motor inclination 0-15 degrees
Max tooling mm 140
Slide copying devices
N° 2 suction nozzles diameter mm 80

Finishing trimming unit for chamfering the excess edge in the top and bottom corners of the panel
N° 2 motors each 0,87 Hp 12000 rpm
Motor inclination from 0 to 25 degrees
Tool diameter 70 mm F16 height 20 mm
Vertical and frontal copying devices with rotating discs
Height adjustment: automatic with the upper pressure unit
N° 2 suction nozzles diameter mm 80

Edge scraper unit for edge finishing in Abs
Radial plate tool
Vertical and frontal copyng devices with rotating discs
N° 2 suction nozzles diameter mm 60

Glue scraper unit for removing glue residues
Vertical copying devices with rotating discs
N° 2 suction nozzles diameter mm 60

Removable support for panel support
N° 5 suction nozzles diameter 100 mm
Compressed air bar 7
Overall dimensions mm 3900 x 1000 x 1600 h
Weight kg 1530
