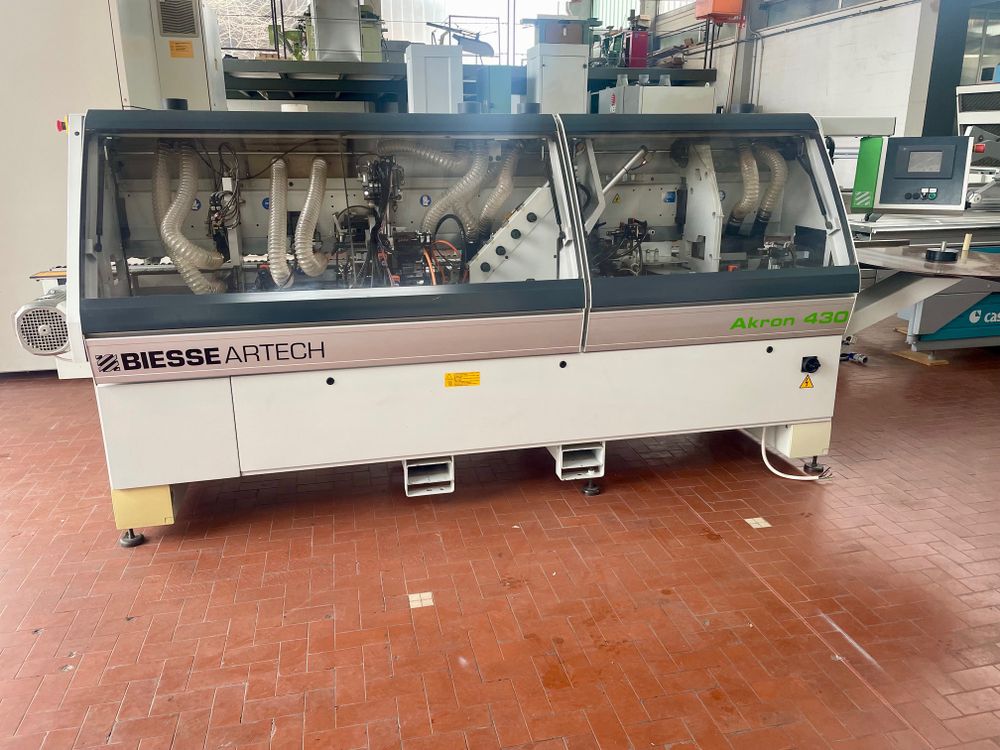

Biesse Akron 430 AT

Edgebander
Technical data:
min/max panel length mm. 140-3200
min/max panel width mm. 85-3200
min/max panel height mm.10-60
Edge thickness in rolls min/max mm. 0,4-3
min/max strip edge thickness mm. 0,4-8
min/max edge height mm. 14-64
working line height mm. 900
panel protrusion from the towing track mm. 25
towing track advance speed 12 m/min
intake air speed 30 m/sec
supply pressure 7-10 bar

SINTRA LT Control entrance guide with mechanical visor
- Grinding group: no. 2 1,8 kW motors with sliding copiers vertical adjustment of tool position
-Gluing group: glue tank capacity 2 kg
No. 3 compressed air counter-pressure rollers edge thickness numeric display
-Shear group with 2 thrust pressure positions based on the thickness of the edge
-Automatic strip edge loader
-End trimming unit: no. 2 KW 0,50 motors, pad copier, no. 2 cutting positions 0°-15° automatically selectable from the control panel (to increase the excess edge or to end trim at the best finishing level)
-Multifunctional sharpening unit with 4 positions selectable from the panel executable machining operations:
plane-chamfer-radius1-radius2 for each finishing position it is possible to select + / – edge excess
-Edge scraper group
-Glue scraper group
Creating programs for different finishes
machine length mm. 3880
weight kg. 1530
