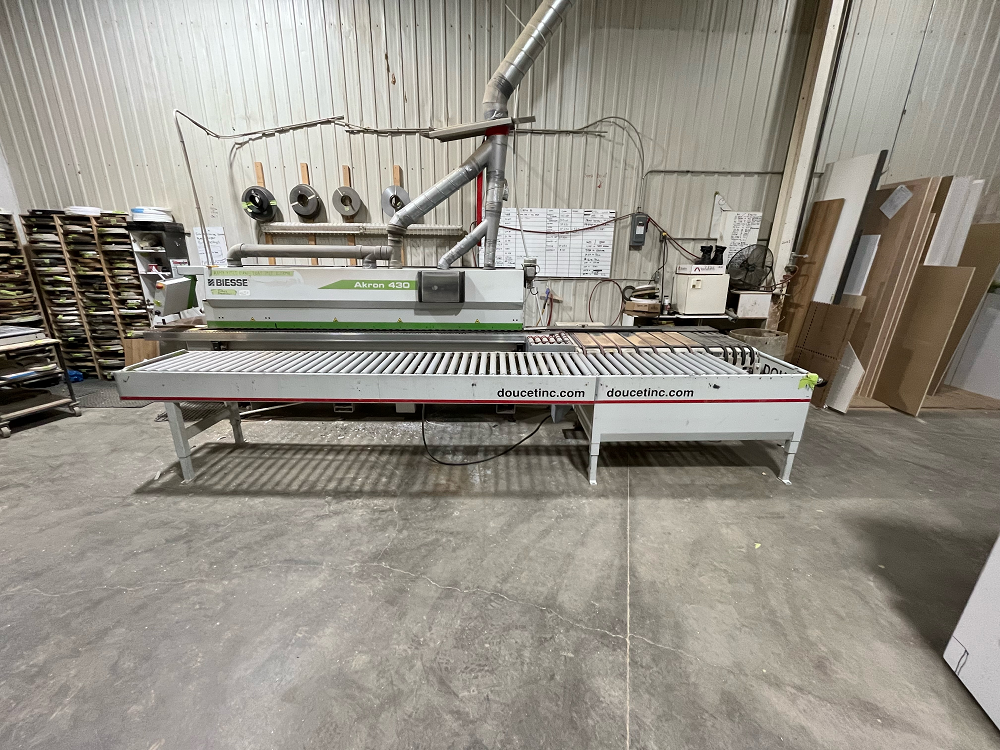

Biesse Akron 430

600 volt integrated transformer
One-sided edgebander with glue pot CN control and command system
with TS10 digital controller, 10`` touch screen LCD graphic display
WINDOWS CE operating system, USB port Chain drive and upper presser

Group of pressure rollers Workstation :
Premilling Gluing unit with pellet pot
Adjustable pneumatic pressure unit E
nd cutting unit 2 tilting saws 0-15˚ for bevel cutting motor 0.50Kw
Fine trimming top and bottom trimming unit, 0.65Kw motor
Radius scraper unit for 3mm pvc finishing
Polishing brush unit, 0.37Kw motor

Specifications:
Minimum & maximum thickness of the part: 10 to 60mm
Minimum room width: 85mm
Minimum piece length: 140mm
Tape thickness in roll: 0.4 to 3mm
Thickness of the pre-cut wooden strip: up to 8mm x 45mm high
Variable training speed: up to 12m/min
Motorized 400Volts 50Hz 3 Phases
Edgebander length 11`
Weight: 1350 kg
Automatic start of the groups and motors foreseen in the program.
2nd pass direct selection key.
Management of 8 digital axes Lists of programs with manual and/or automatic launch.
Diagnosis of errors with codes and comments.
Statistical production data.
This device is mounted on an adjustable suspended control panel NOT INCLUDED RETURN CONVEYOR
