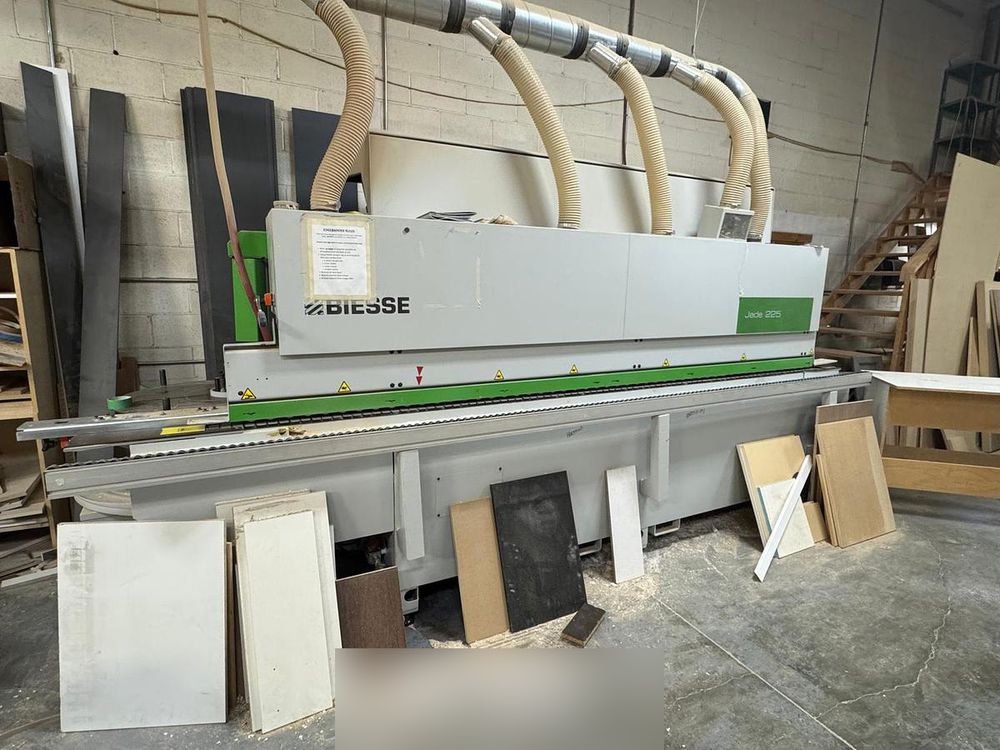

Biesse Jade 225

The 2018 Biesse Jade 225 is an automatic, single-sided edgebander designed for small to medium shops, featuring premilling, corner rounding.
It handles panel thicknesses of 10–60 mm, edge thicknesses of 0.4–8 mm, and operates at 12 m/min.
It is a compact, high-precision machine tailored for PVC, ABS, and wood veneer.

Key Specifications (2018 Model):
Panel Height: 10–60 mm (0.39" – 2.36").
Edge Thickness: 0.4–8 mm (0.01" – 0.31").
Feed Speed: 12 m/min.
Min. Panel Length/Width: 150 mm / 85 mm.

Key Working Units:
Pre-milling Unit: 2 x 1.8 kW motors.
Trimming: Tilting top & bottom RI-701 units (0.65 kW).
Finishing: Edge scraping (RB-701), flat glue scraper (RCC-700), and buffing unit (SPL-700).
