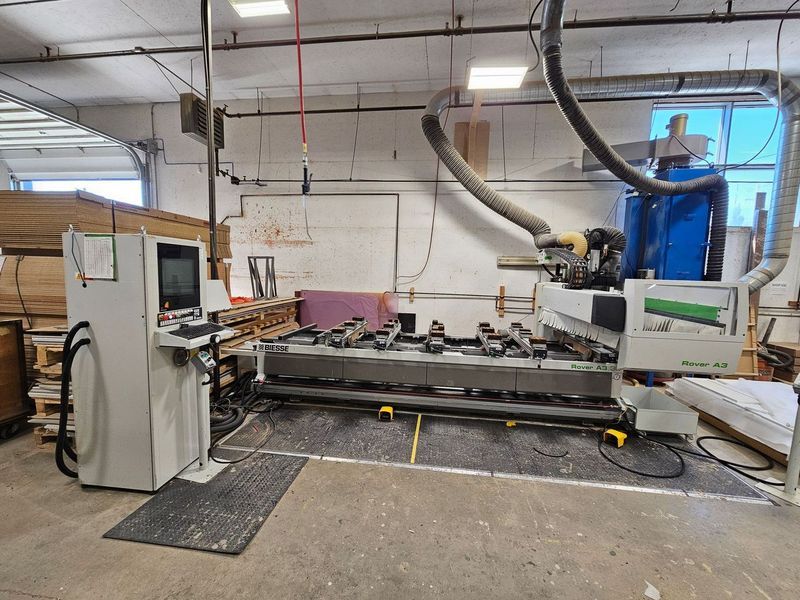

Biesse Rover A 3.30

Numerically controlled machining centerWorking fields: X = 3060 mm; Y = 1260 mm; Z = 150 mm
The composition includes: Automatic lubrication system 6 ATS panel supports
L = 1200 mm
18 sliding bases 6 Stops with a stroke of 115 mm 6 Stops with a stroke of 115 mm positioned at 970 mm
4 Side stops with a stroke of 115 mm (2 Lh + 2 Rh) inclusive of the pneumatic system
4 Removable central stops with a stroke of 115 mm (2 Lh + 2 Rh) inclusive of the pneumatic system
Division of the vacuum system in 2 work areas in X and in 4 independent locking areas in Y Division of the pneumatic system in 2 work areas in X and in 4 independent locking areas in Y Pneumatic system for bar supports
2 independent work areas in X 4 Bar supports 12 Clamping units for the locking of narrow pieces
12 Vacuum modules with dimensions 132 x 146 x H48 mm
6 Vacuum module s with dimensions 132 x 75 x H48 mm
Belt conveyor for the removal of chips and off-cuts 90 m3/h vacuum pump
Auxiliary vacuum system 12 kW (16.1 HP)
Electrospindle with ISO 30 adaptor, air cooled
Operating device with 360? interpolation (C axis)
Boring head BH 21 L Prearrangement for the assembly of a chip deflector Iron gripper for the storage of a chip deflector
Revolving tool changer with 18 places Remote keyboard
Advanced version Numerical control XP600 Graphic operator interface BIESSEWORKS Air conditioner for electric cabinet
Inverter Safety devices with 2 front safety mats and back and side fencing 12 kW (16.1 HP)
Electrospindle, HSK F63 adaptor, air cooling, in replacement of the 12 kW (16.1 HP) ISO 30 standard electrospindle
Blowing unit for electrospindle* Incompatible with 5-axes units
Transformer for voltages different from 380/400/415 Volt 50/60 Hz
Software update from BiesseWorks Basic machine to BiesseWorks Advanced machine BiesseWorks Advanced
Office version2 Hardware protection keys included
Requires the operating system Windows XP or Windows 7* For NC BH660, XP600 and NC1000 requires BiesseWorks Advanced
Machine version
