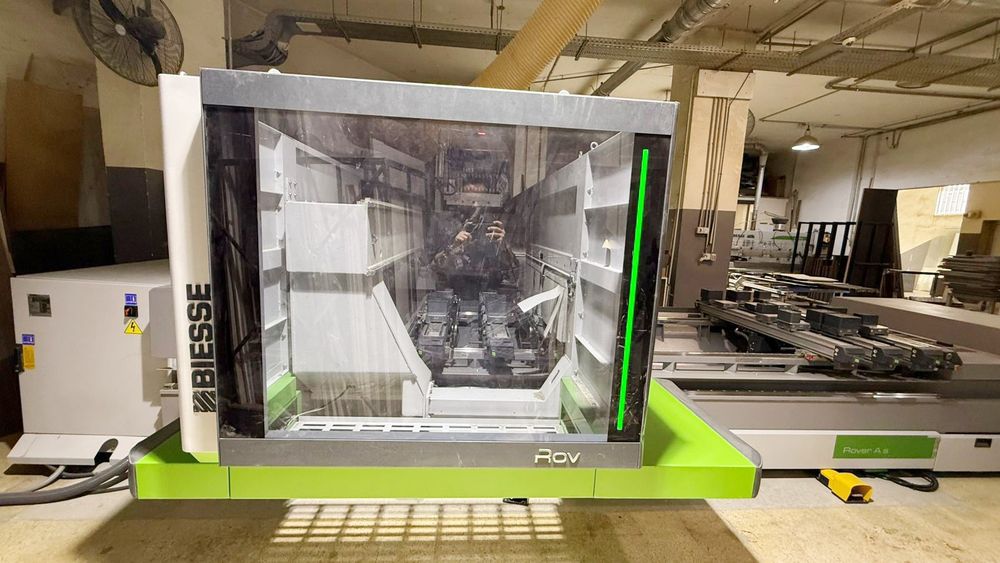

Biesse ROVER AS 1532

Work center
Working range X: 3140 mm
Working range Y: 1570 mm
Working range Z: 200 mm
13 kW operating unit with 5 interpolating axes
HSK F63 connection and liquid cooling – 20,000 rpm
7 independent vertical tips
6 horizontal tips in X
4 horizontal points in Y
2 saw blade group for X and Y grooves
13-position revolver tool changer, positioned on the X-axis carriage for machines with front and rear stops
Tool holder with HSK connection equipped with short flange for saw blade used on 5-axis units
Saw blade Ø 300 mm for tool change with flange
Automatic lubrication system
Vacuum system
Electrical panel
Inverter for electrospindle and drilling unit
Air conditioner for electrical panel
Stop for panels with protruding edges
Vacuum pump 250 m3/h
Remote keyboard
BSolid Software
