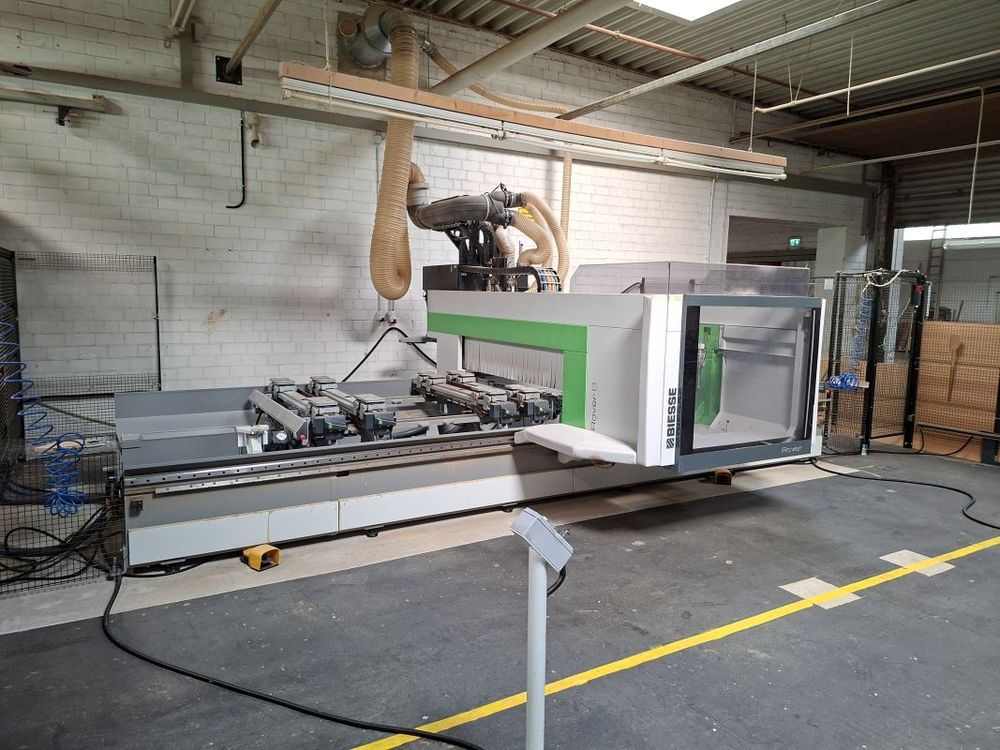

Biesse Rover B 1650

CNC machining center
Technical data:
RM850 remote control
The remote control features:
- Emergency stop switch
- 1 potentiometer
- Menu control buttons and 3 programmable buttons

Working range:
X = 5055 mm; Y = 1650 mm (may vary depending on configuration)
Z = 200 mm with modules H = 74 mm
Z = 245 mm with modules H = 29 mm

Workpiece passage in Y:
1650 mm, with a thickness of up to 60 mm on modules H = 74 mm
1600 mm, with a thickness of over 60 mm on modules H = 74 mm
Length of workpiece supports (not included in scope of delivery) = 1538 mm

8 ATS workpiece supports - 32 module carriers
Automatic positioning (EPS) for work tables
Division of the pneumatic system into 2 working areas in X
Stop for the rear row with 140 mm stroke.
Stop for the middle row, positioned at 820 mm, with 140 mm stroke.
Stop for the front row, positioned at 1460 mm, with 140 mm stroke.
4 side stops with 140 mm stroke (2 left + 2 right) complete with pneumatic equipment
2 additional side stops with 140 mm stroke (1 left + 1 right)
4 removable center stops with 140 mm stroke (2 left + 2 right) including control system
300 m3/h vacuum pump with cam
Chip conveyor belt integrated into the machine bed for sizes 1650 and 1950
Configuration 3 B, for Rover B G

Machining unit with 5 interpolating axes 13 kW, with HSK F63 adapter, liquid-cooled
- 11 kW at 12,000 rpm, S1 duty cycle
- 13 kW at 12,000 rpm, S6 duty cycle
- Speed: max. 20,000 rpm
- C-axis: 360° endless rotation
- C-axis rotation speed: 12.4 rpm
- B-axis as position axis: +/- 100°
- B-axis rotation speed: 12.4 rpm

BH 29 L drilling head with automatic lubrication
- 16 individually selectable vertical drilling spindles in 32 mm increments, 12 of which are in the X direction and 4 in the Y direction
- 6 horizontal drilling spindles with double output and 32 mm center distance, 4 in the X direction and 2 in the Y direction
- 1 groove saw in the X direction, diameter 120 mm (cutting depth max. 25 mm)
- Drive via 1 motor using an inverter (power 1.7 kW at 2800 rpm/1-3 kW at 6000 rpm/1) The speed of the drills is variably adjustable up to 6000 rpm/1.

Revolver tool magazine with 16 slots, installed directly on the X machining unit
Self-floating HSK F63 copying unit for milling at a constant depth, tool diameter 62 mm
Solid
The software package runs in the Windows environment and enables the design of the end product.
Solid - Import external formats
Solid - 3-axis machining
Solid - 5-axis machining
