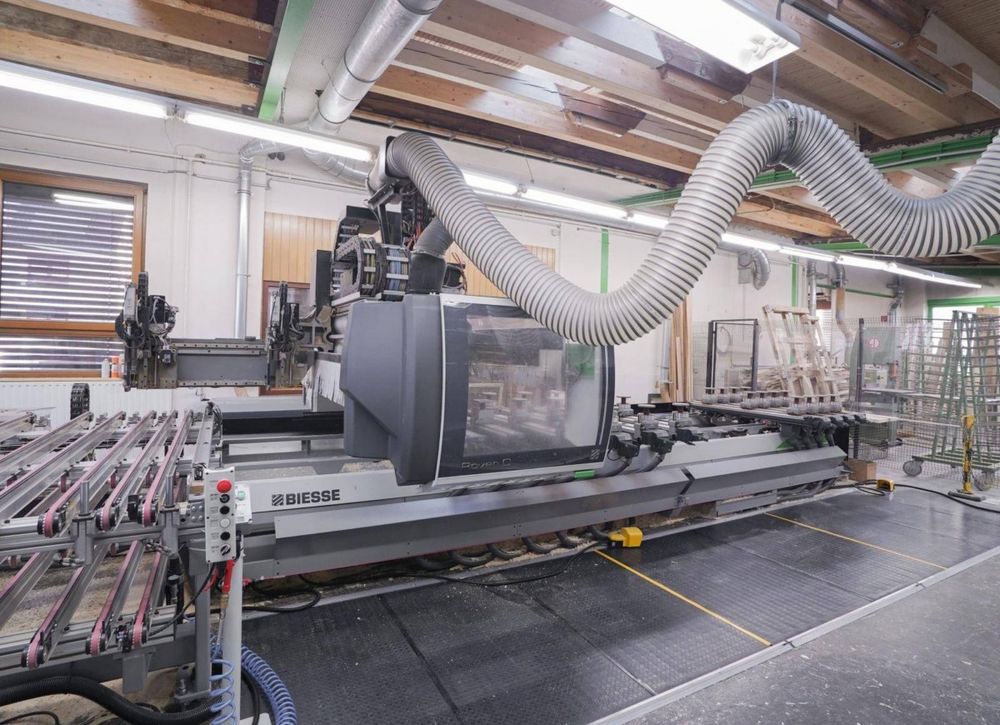

Biesse ROVER C WMS 6.50

CNC Machining Center - Windows
Machine with automatic loading and unloading system

Manufacturer's Technical Specifications:
Working area:
X: 4,600 mm
Y: 1,535 mm
Z: 230 mm

Fixed milling and drilling units:
Main spindle
1 milling unit, HSK F63, with C-axis

Drilling and sawing units
Multifunction unit
Saw unit
Drilling head BH 9 with Drill Quick-Change System

Tool Changer:
Total 66 slots: 1 x 22 pieces + 2 x 22 pieces in the "Flexstore"

Change Units:
HSK F63 Angle Unit with 1 output (lock box) for horizontal milling
HSK-F63 Angle Unit with 4 outputs (3+1) for horizontal drilling
HSK-F63 Angle Unit with 4 outputs for horizontal milling or drilling

Machine Table
Console table with 10 crossbeams, automatic positioning

Control :
XP 600 CNC Control
Software: DIREKT CNC NC-HOPS 6.1
DXF interface
BIESSE RM 850 remote control

Further features :
Biesse EPS automatic table
Chip guide element
Vacuum pump 250 m³/h
Special workpiece clamping system for windows
Chip conveyor belt
CE marking
Space requirement L x W x H: approx. 10,600 x 4,700 x 2,600 mm
Machine including interchangeable units
Machine without machining tools
