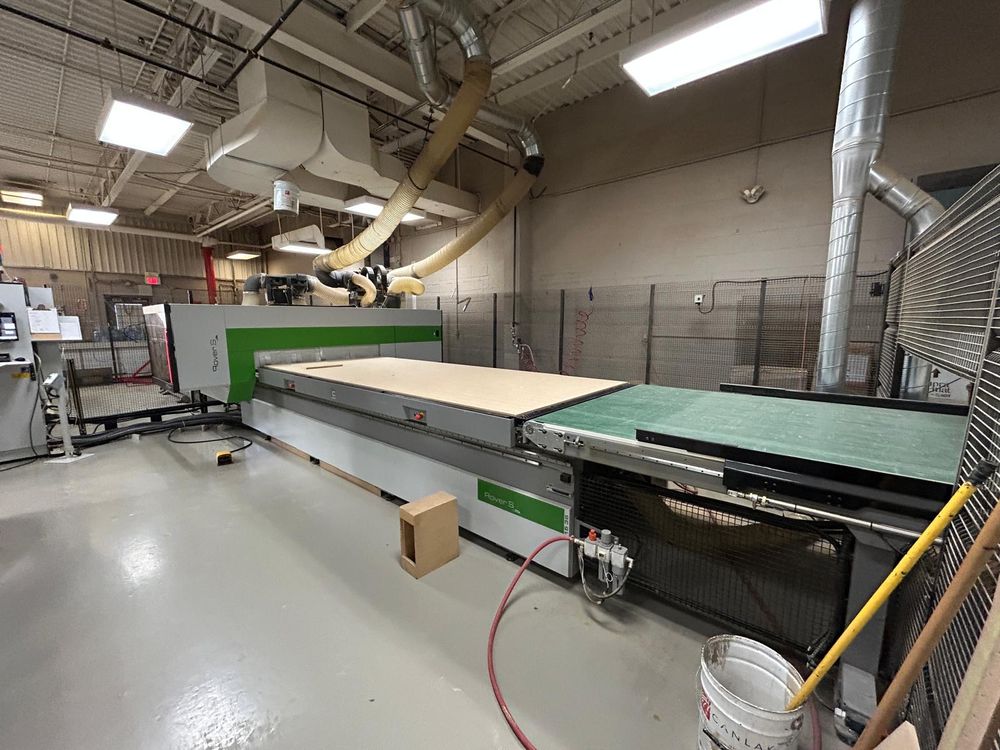

Biesse Rover S FT 1536

CNC Router
Condition: Used – Very Good Condition

Key Features :
5' x 12' flat table nesting configuration
Heavy-duty gantry structure for vibration-free machining
Brushless servo motors with digital drives
Rack and pinion drives on X/Y axes for high-speed operation
Ball screw Z-axis with preloaded nut for precision positioning
Multi-zone vacuum table for efficient panel hold-down
BH660 PC-based CNC control system
Full CAD/CAM integration with bSolid software suite
Industry 4.0 ready (OPC-UA + remote connectivity)

Working Capacity / Material Specifications :
Work Table Size: 3763 mm (X) × 1558 mm (Y) (~5’ x 12’)
Panel Capacity: Max Y panel width: approx. 1555 mm
Z-Axis Stroke: 320 mm
Clearance / Passage:
Standard passage: 170 mm
With hood: 105 mm

Axis Speeds:
X / Y: up to 60 m/min
Z: up to 25 m/min

Routing / Spindle
Electrospindle:
19.2 kW (25.7 HP) HSK F63 spindle
Speed range: 1,000 – 24,000 RPM
Liquid cooled system
Ceramic bearings
Automatic dust hood positioning

Drilling Capability :
Boring Head (BH18):
18 vertical spindles
32 mm spacing system
Speed: up to 6,000 RPM

Tooling & Machining Capability:
12-position tool changer (X-axis mounted revolver)
Max tool diameter: up to 160 mm
Max tool weight: 7.5 kg
Supports:
Routing
Drilling
Grooving
Nested-based panel processing

Electrical Specifications:
Voltage: 380–415 V
Frequency: 60 Hz
Phase: 3 Phase
Control Voltage: 24V DC stabilized system
Transformer: Integrated auxiliary transformer
Optional Compatibility: Up to 575–600V via autotransformer

Software & Control System:
Biesse BH660 CNC control system
bSolid CAD/CAM software platform
bNest nesting optimization module
Real-time machining simulation
Tool life management and diagnostics
Remote service (teleservice + IoT integration)

Machine Dimensions & Footprint
Length: approx. 7,318 mm (288”)
Width: approx. 5,034 mm (198”)
Height: approx. 2,445 mm (96”)

Condition Notes:
Very good mechanical and cosmetic condition
Fully operational and production-ready
Maintained in industrial environment
Clean electrical and CNC system
Standard wear consistent with usage
