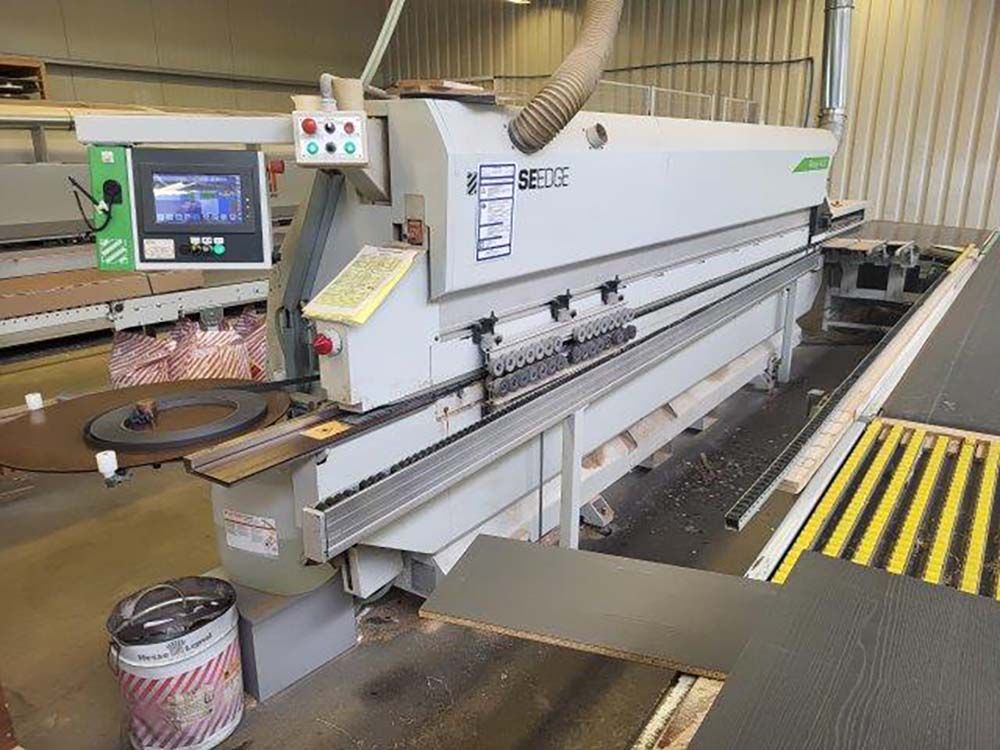

Biesse Roxyl 4.5

Used machine
Single-sided automatic edge banding machine with CNC control 10" touchscreen
Industrial conveyor chain 1"1/4
Jointing trimming unit FI-502
Glue application unit VC-710
Cross-cutting unit IN-801
Flush trimming unit RS-100, top and bottom
2 motorized multifunctional units: CR-202 profile trimming unit (FAST system with 4 positions as standard)
RBK-503 scraper unit, NC 2 positions
RCC-701 flat scraper
Workpiece thickness 10-65 mm
Max. workpiece height with profile trimming unit (depending on profile) 35-65 mm
Edge thickness for rolls 0.4-3 mm
Edge thickness for strips 0.4-22 mm (depending on unit)
Min. workpiece length 140 mm
Min. workpiece width (at length 140 mm) 85 mm
Min. workpiece width (at length 250 mm) 50 mm
Feed speeds 10-14-18-20 mm
Central extraction connection 200 mm
Extraction connection for gluing 80 mm
Extraction connection for jointing 120 mm
Glue container capacity approx. 3 kg
Heating time at 1/2 fill approx. 10 min.
Length 6000 mm
Width 1780 mm
Height 1770 mm
Machine does not include the workpiece return device shown in the pictures.
