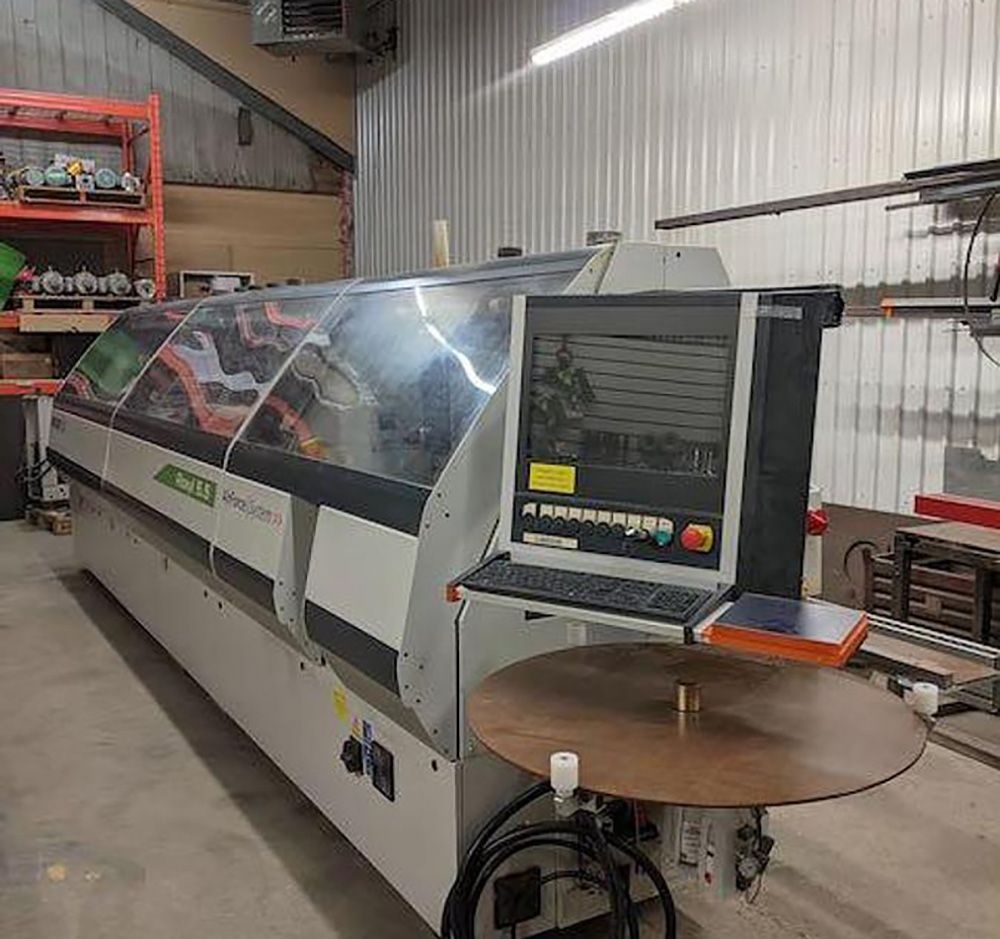

Biesse Roxyl 5.5

Capacity;
Edge thickness; strips (0.4 - 22mm)
Edge Thickness; coiled stock; (0.4 - 3mm)
Panel thickness; 10 - 60 mm (0.39 - 2.36")
Work piece width min.;85 mm (3.34")
Work piece length min.; 140 mm (5.51")
Feed speeds 10 - 14 - 18 - 20 MPM (33 - 46 - 59 - 65 FPM)

Machine Layout
Motorized top beam positioning
Adjustable infeed fence
Pre-Milling Station "FL-502": (2) LH & RH Rotating NC controlled spindles with automatic center positioning.
Infrared Heating Lamp: Preheating workpiece edge to ensure best possible surface adhesion
EVA (Hot Melt) gluepot, equipped with quick pre-melting
2 Coil Magazine
Pressure Section: Servo controlled programmable pressure section with (1) large driven roller and (4) idle rollers.
End Trimming; Front & rear trimming motors, swivel to 0° - 15° bevel, programmable pneumatic change
Rough Trimming (first set); Top/Bottom pre- or flush trimming motors
Fine Trim/Bevel/Radius Trimming; Servo controlled, pneumatic pre-positioning of motors
Corner Rounding; (2) Motor corner rounding
Profile Scraping; Top/Bottom 2-axis NC programmable knife positioning
Glue Scraping; Flat, top/bottom, digital positioning indicators, pneumatic controlled positioning
Buffing; Top & Bottom buffing motors with 150 mm (6") cloth buffing wheel. fully adjustable
Hot air blowers
Overhead belt hold down
Centralize lubrication system
External multitap transformer
