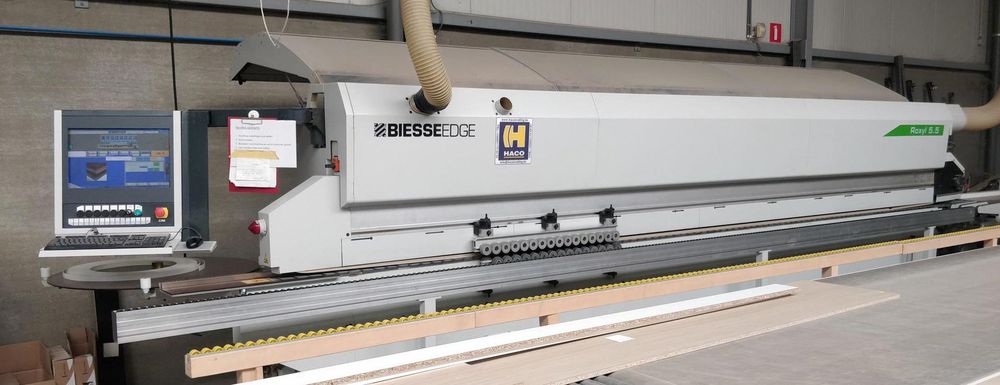

Biesse Roxyl 5.50

Edge banding machine
Panel height mm : 10-65
Panel height with rounder mm : 35-65
Rolled edge material mm : 0.4 - 3
Solid edge material max mm : 0.4 - 22
Min. panel dimensions mm : 85 x 140
Min. panel dimensions mm : 50 x 250
Throughput m/min : 10-14-18-20-25
Diam. suction connections mm : 1x 200 + 1x 80 + 1x 120
Max. cap. glue pot kg : 3
Dimensions ( l x w x h) mm : 6000 x 1800 x 1800

10" Touch screen
Controlled roughing (2 moths)
Presmitter
Cut-off saw 2 motors tiltable 0-15°
Multifunctional and tilting milling unit above and below
2-motor angle trimmer
Radius scraper
Flat scraper
Nozzles
Brushes
