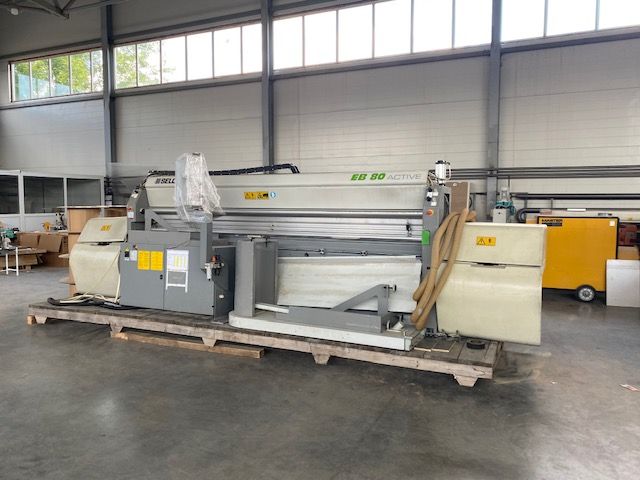

Biesse SELCO EB80

Standard configuration:
3 front air cushion tables
Main saw motor 11 kW / 50 Hz
Scoring saw motor 2.2 kW / 50 Hz
Saw load control
Quick and safe saw blade change at the front of the center
Manual adjustment of the scoring saw
Eliminate the scoring saw directly from the control console
Brushless motor for moving the saw carriage, speed 1-100 m/min.
Brushless pusher motor - maximum speed 60 m/min.
Automatic roller side leveler min. width 60 mm. - max. 2200 mm.
Safety devices in accordance with current standards

Main characteristics:
Maximum cutting length: 3800 mm
Maximum pusher stroke: 3200 mm.
Maximum reach of the main saw: 80 mm.
Maximum clamp opening: 80mm.
Height of work tables: 935 ± 15 mm.
Max. machine size (width x length): 6585 x 6026 mm.
