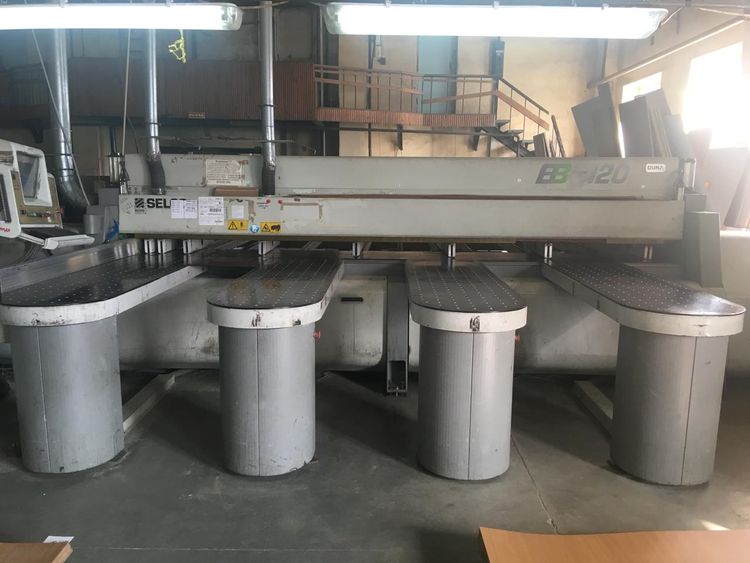

Biesse SELCO EBT 120

BASIC EQUIPMENT UNITS AND MECHANISMS:
Main saw, diameter 430 mm (flat/trapezoidal tooth), 1
Scoring saw, diameter 200 mm (trapezoidal tooth), 1
Air cushion table with rounded profile 2050 x 650 mm, 4
Vacuum pump for max. 6 air cushion tables, 1
Smooth auxiliary table 500 x 500 mm, 1
Pneumatic grippers (see appendix for location)
with movable lower tongue, 8
Support beams with rollers, diameter 50 mm, in the pusher area, 14
Front levelers, 3
Rear inlet on lifting table, including photocell, control panel and set of electronic boards for connection to the driven infeed conveyor.
Rear loading driven rollers on a 4400x2200 lifting table instead of beams (600 mm stack).
Feed speed 6.7 m/min (50 Hz) – 8 m/min (60 Hz)
Rear feed roller table with non-driven rollers 4400x2200 mm
(height from the floor 300 mm)
2 panel stack stops with rollers (middle) for a feed roller table with a length of 3200 mm/3800 mm/4400 mm
DIGISET system for electronic adjustment of the scoring saw
Personal computer with a 15" monitor, keyboard, mouse, and Windows OS
