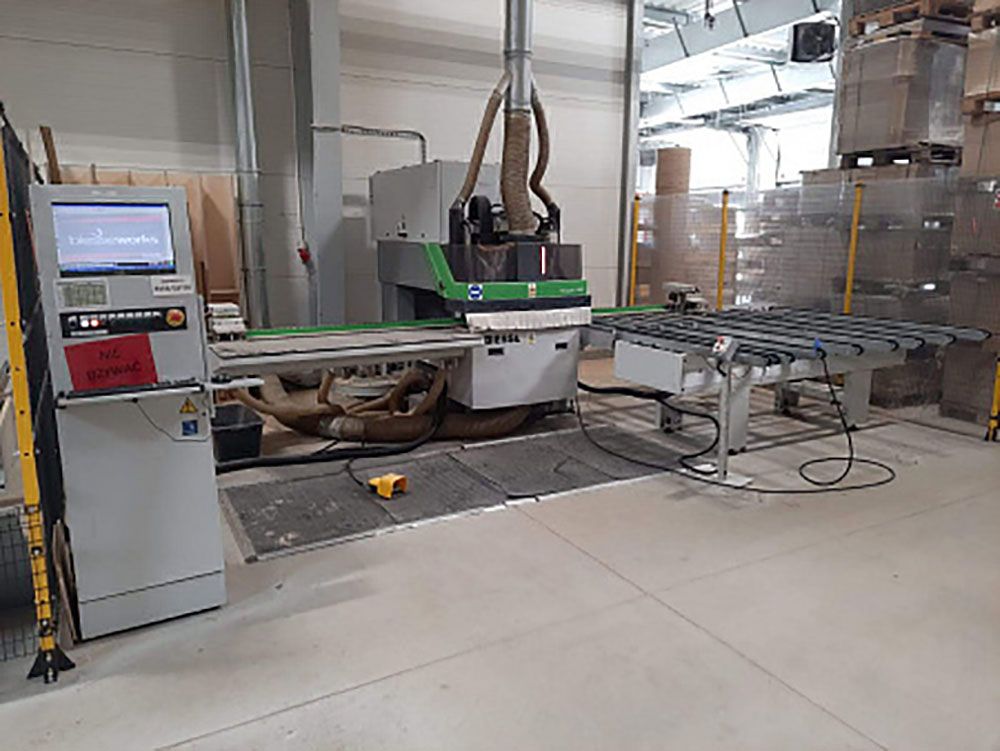

Biesse SKIPPER 100

Specifications:
Panel size to be processed
Length 90-3000 mm
Width 70-1000 mm
Thickness 8-60 mm

Working area by length (X)
Vertical spindles 0-3000 mm
Horizontal spindles by X 0-2800 mm
Horizontal by Y 0-3000 mm

Working area by width (Y)
Vertical spindles 0-1140 mm
Horizontal spindles by X 0-1044 mm
Horizontal by Y 90-1070 mm
Working area by height (Z) 8-60 mm

Number of spindles:
A total of 78 independent spindles, 39 on the upper head and 39 on the lower.
Each working head contains:
– 29 independent vertical spindles (17 in X and 12 in Y)
– 8 independent horizontal spindles in X axis
– 2 independent horizontal spindles in Y axis

Rotation speed of the electric milling spindle 7000 – 18000 rpm
Rotation speed of the drilling spindles approx. 4000 rpm
Rotation speed of the saw approx. 4500 rpm

Automatic central lubrication
On all moving axes with NC control and brushless motor
Additional equipment
1. Loading table with air cushion
2. 2 pcs. electric spindles with a power of 3.5 kW
each 3. 2 pcs. grooving saws
4. Automatic belt unloading
