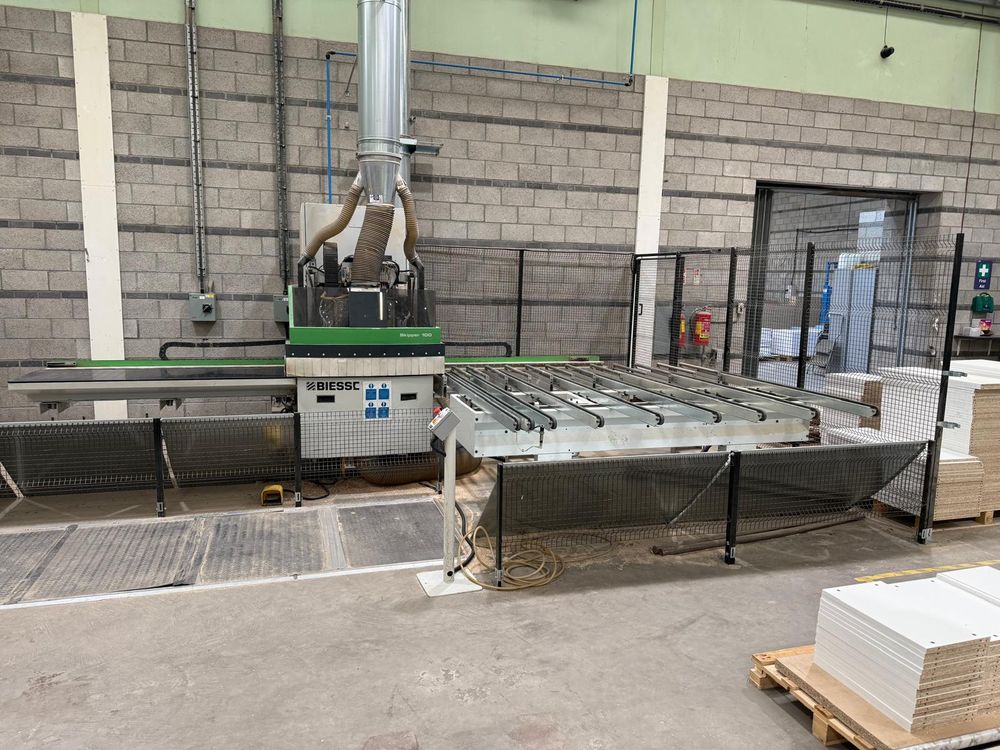

Biesse Skipper 100

Flexible CNC machining centre designed for the high-speed drilling, routing and grooving of panels.
The machine processes components from both above and below, reducing handling and eliminating the need to turn panels manually.

Specification:
Machine type: Point-to-point CNC drilling and machining centre
Panel length: 90–2,500 mm on the Skipper 100 S
Panel length: 90–3,000 mm on the Skipper 100 L
Panel width: 70–1,000 mm
Panel thickness: 8–60 mm
Two opposing machining units for simultaneous top and bottom processing
29 vertical drilling spindles per machining unit
Eight horizontal drilling spindles in the X direction per unit
Two horizontal drilling spindles in the Y direction per unit
Two 3.5 kW electrospindles
Electrospindle speed: Approximately 7,000–18,000 rpm
Suitable for vertical and horizontal drilling, routing and grooving
CNC-controlled panel positioning
Ideal for cabinet components, furniture panels and batch-size-one production
The Skipper 100 provides a flexible point-to-point machining solution capable of processing panels
without traditional worktables, vacuum pods or lengthy manual setup.
