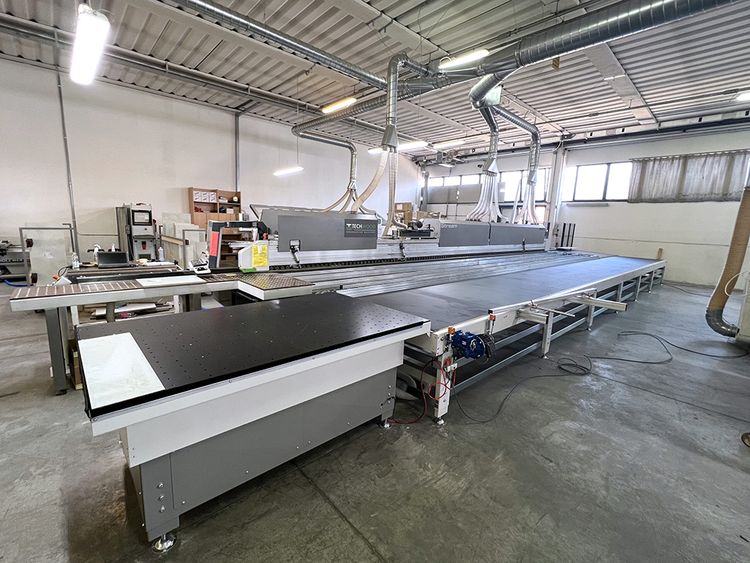

Biesse STREAM B1 10.5

Machine overhauled in 2021
CONTROL SYSTEM:
• Multi-axis numerical control with PC interface
• Programming and control system with color display and video
• WINDOWS operating system
• Adjustable overhead control panel for machine control
• Built-in electrical cabinet

TECHNICAL SPECIFICATIONS:
• Panel working width (min – max): 100 – 3,200 mm
• Panel working length (min – max): 150 – 3,200 mm
• Workable panel height with straight edge (min – max): 10 – 60 mm
• RT20 Rectifier Unit consisting of two vertical-axis motors with timed pneumatic intervention.
The unit allows manual adjustment based on the panel protrusion, with a digital position indicator.
It consists of two motors with automatic timed intervention to prevent chipping of the panel.
Motor power: 3.5 kW, 12,000 rpm each.

GLUING, LOADING, AND EDGE PRESSURE:
• PU glue application unit
• NORDSON pre-melting unit
• 12-position roll edge magazine
• Cutter for cutting roll edge, complete with automatic shear pressure adjustment
• Edge pressure roller unit with timed rollers on straight profiles – 1 + 3 pressure rollers
• Electronic roller adjustment
• Automatic height adjustment of the edge guide device
• Liquid spray application unit

EDGE BANDERING UNIT :
• IT90-S End Trimming Unit with Flex system that allows automatic adjustment of the edge excess
– Consists of two NC motors with 0°/25° pneumatic tilt
– Motor power 0.65 kW 12,000 rpm each.
• RS-10 Roughing Trimming Unit
– Automatic pneumatic override
– Consists of two motors with pneumatic adjustment to two positions
– Motor power 2 kW, 12,000 rpm each.
• RF-40 Fine-Chamfering Unit for trimming and chamfering edges
– Position controlled directly by NC
– Automatic pneumatic override by numerical control
– Two independent motors tiltable 0°/25°
– Motor power 1 kW, 12,000 rpm each
• AR80 Rounding Unit for automatically rounding edge corners
– Two ROTAX series electrospindles that move on Cartesian axes
– Axis movements via brushless motors
– Double turret magazine with two spindles 8 positions for automatic tool management and change
– Motor power 0.65 kW 12,000 rpm
• RB40 Edge Scraper Unit
– Position controlled by NC
– Complete with scrap suction and collection box
– Automatic exclusion by NC
• RC20 Glue Scraper Unit for removing excess glue residue
– Equipped with 3+3 vertical bearing copiers
– Automatic exclusion by NC
• Liquid Spray Application Unit
• SZ30 Overlapping Oscillating Brush Unit with 2 motors for cleaning and polishing rounded edges – Automatic exclusion by NC
• PH-10 Drying Unit
• Universal Milling Unit for creating profiles, grooves, and slots on the edge and on the upper and lower surfaces of panels with pneumatic intervention
– The unit is composed of a motor that can be tilted to 2 positions, 0° and 90°, thanks to a pneumatic drive, controlled by NC
– Tool rotation according to the direction of Panel travel
– Motorized and NC-controlled Y-axis adjustment
– ​​Motor power 7.5 kW 12,000 rpm

SAFETY REGULATIONS AND OPTIONS:
• Copy of the original CE Declaration of Conformity
• Protective enclosure and soundproofing of the operating units
• Extraction system in the upper part of the protective enclosure
