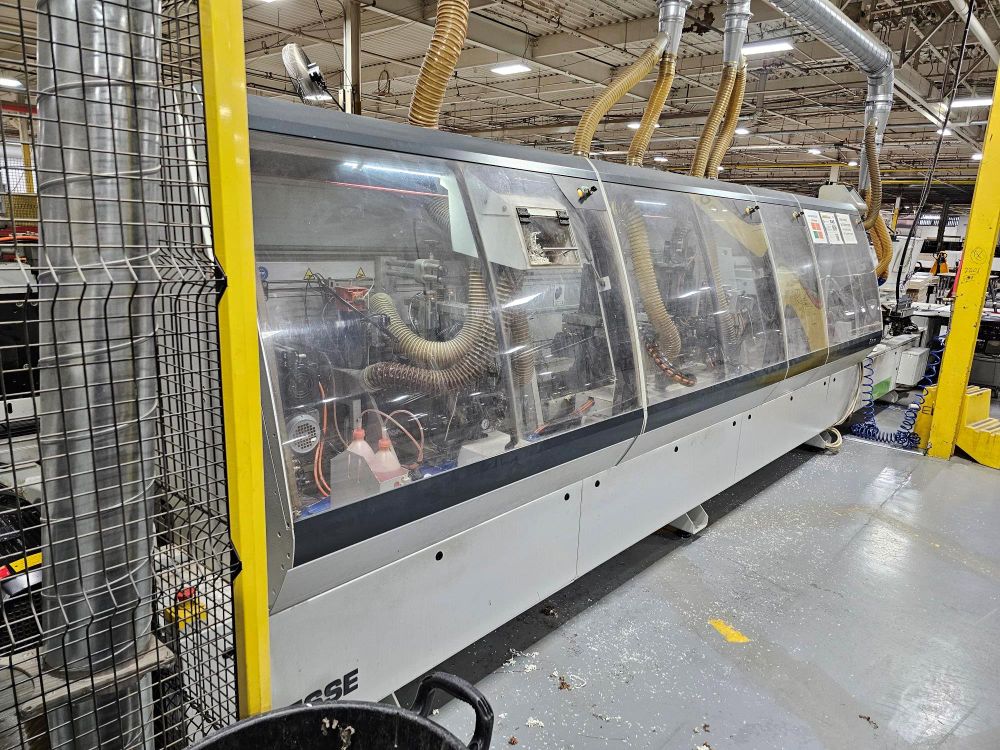

Biesse Stream B1 8.0

CONTROL SYSTEM:
- Windows operating system
- Adjustable hanging command board to control the machine
- Incorporated electrical cabinet

TECHNICAL FEATURES :
Edge thickness applicable in roll (min- max): 10- 60 mm
Edge thickness applicable in strips ? narrow pieces (min- max): 0.4- 3 mm

PANEL INTRODUCTION AND FEEDING SYSTEM:
- Squared infeeding unit
- Top pressure unit with electronic positioning controlled by NC
- Infeed guide with electronic positioning managed by NC
- Lateral panel support with aluminum track complete with supporting wheels

SQUARING UNIT:
- INFEED PRE-MILLING UNIT RT-30.
First incoming copy with electronic positioning managed by NC.
AUTO-SET device that ensures optimal positioning of the cutter according to the thickness of the workpiece
GLUING UNIT, LOADING AND PRESSURE OF EDGE - ANTI-ADHESIVE unit to allow optimal cleaning
of the workpiece on the upper and lower surface of the panel

- GLUING UNIT SP10 complete with:
-- Predisposition for hot air gluing system AirForceSystem
-- Gluing system for polyurethane glue
-- Disk coil holder
-- Z axis for edge guide device
-- Guillotine to cut the edge in rolls with automatic regulation of the shear pressure
-- Edge pressure roller with timed rollers on straight profiles

- Electronic positioning managed by NC
- Nr. 1 + 5 pressure rollers

EDGEBANDING UNIT:
- END TRIMMING UNIT IT90-S with n.2 motors to cut the excess edge on the front and rear of the panel
with inclination of the motors on the vertical axis from 0? to 25? automatic adjustment of the excess edge.
Kit of nr. 3 pneumatic positions managed by NC - ROUGH TRIMMING UNIT RS10
Automatic pneumatic exclusion of the group
It consists of 2 motors with pneumatic adjustment on 2 positions
Pro-nesting kit - FINE TRIMMING UNIT RF40 for trimming and/or edging the top and bottom of the applied edge
Automatic regulation through 4 axes managed by NC. Automatic pneumatic exclusion of the group
Pro-nesting kit

SPRAY LIQUID APPLICATION UNIT :
Multifunctional ROUNDING UNIT with nr. 2 motors AR30 with FAST system
with nr.2 positions pre-selectable from NC for automatic edge corners rounding on top and bottom of the panel
EDGE SCRAPING UNIT RB40 for edge finishing in ABS/PVC very thick to eliminate the imperfections derived from previous machining operations on the upper and lower part of the edge.
Pneumatic multi-radius from NC
GLUE SCRAPING UNIT RC20 for the removal of the excess glue from the join between edge and panel
SPRAY LIQUID APPLICATION UNIT
MILLING UNIT FB30
OVERLAPPED BRUSHING UNIT SZ30 with nr. 2 motors for cleaning and polishing the rounded edge
BUFFING UNIT PH-10
