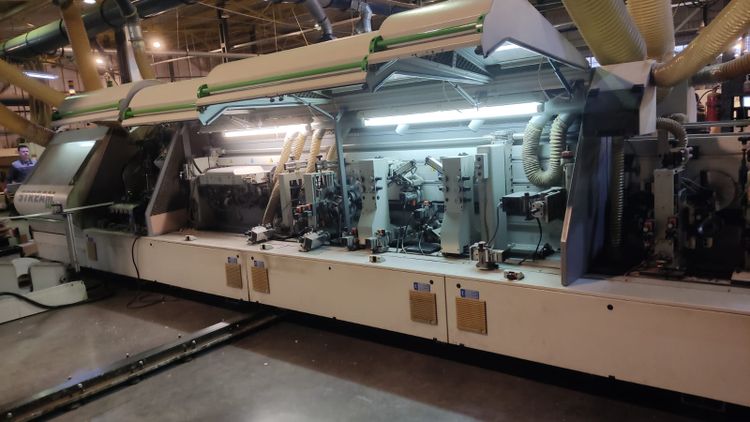

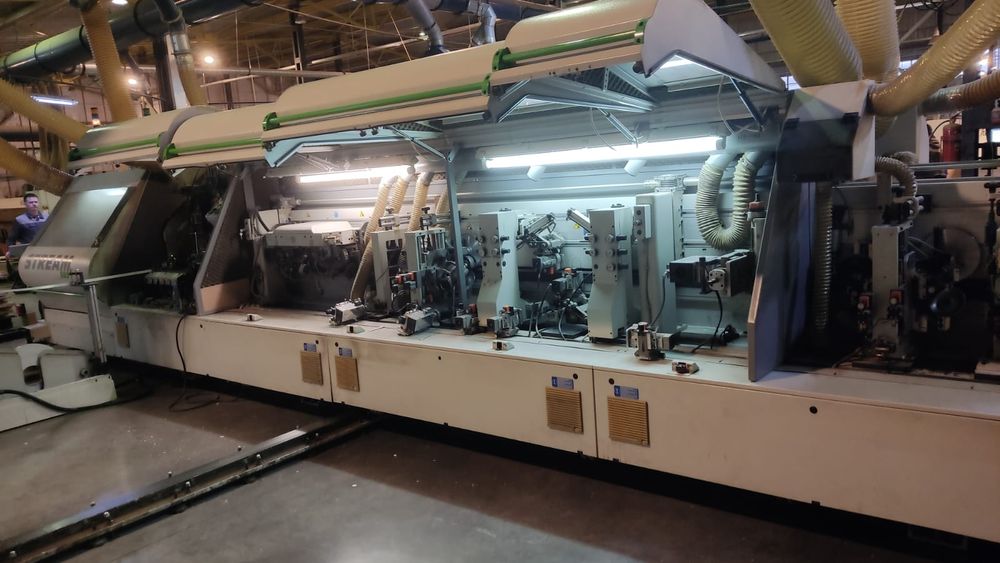

Biesse STREAM SB2 10,5X

Double-sided edgebanding machine
The machine can be either the first or the second in the line (or independently)
Edge thickness (min/max) mm 0.3 - 3
Panel thickness (min/max) mm 10 - 60
Working width (min / max) mm 240 - 3200
Digital controller / software SINITRA
Adjustable feed speed (m/min) 10 - 40 (INVERTER CN)
Soundproof booths
Manual adjustment of the workpiece overhang length (support tables of working units)
Distance (center to center) between feed stops (mm) 500

FORMAT-CUT SECTION (on each side):
Anti-splinter milling unit AS 10 PNEU (Kw 8.1 x 2)
2 x crusher DT 10 (Kw 8.1) + Free space
Spray unit (liquid reducing stickiness)

EDGE BANDING (both sides):
Adhesive application system (hot melt adhesive with fast melting system) SP3 (HighMelt) Option - PU MC30
Electronically adjustable pressure zone
Bobbin holder (No. 6)
End-cutting unit IT 90-M (Kw 0.3 x 2) 28 m/min
Finish milling unit (Multi-profile) RF 30 (Kw 0.65 x 2) 25°
Corner rolling unit AR 34 (Kw 0.35 x 4) Fast System (2 Positions)
2 Grooving unit FB 32 (Kw 4.5 x 2) 0 - 90°
Profile scraper RB 10
Glue scraper RC 05
Spray unit (with polishing liquid)
OPTION: Hot air dryer for restoring edge color PH 10
