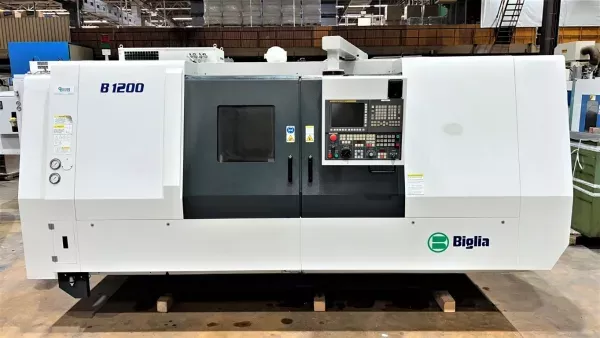

Biglia CNC CONTROL 2800 rpm B1200 3 Axis

X-axis travel: 220 mm
Z-axis travel: 1330 mm
Y-axis rapid traverse: 6 m/min
X-axis rapid traverse: 20 m/min
Z-axis rapid traverse: 24 m/min

Max. bar diameter: 94 mm
Max. acceleration diameter: 400 mm
Max. machining length: 1200 mm
Max. turning diameter: 500 mm

Spindle speed range: 40–2800 rpm
Spindle nose: ASA 8
Spindle bore: 111 mm
Front bearing inner diameter: 150 mm
Max. chuck diameter: 250 / 315 mm
Collet type: DIN 6346
Spindle motor power: 26 kW

Turret positions: 12
Turret type: Bidirectional
External tool shank: 25 x 25 mm
Boring bar shank: 40 mm
Indexing time: 0.10 sec

Tailstock quill travel: 150 mm
Tailstock quill diameter: 115 mm
Morse taper: CM5
Tailstock positioning: 1100 mm
Piston area: 34.5 cm²
Max. working pressure: 30 bar
Max. nominal thrust: 1035 daN

Coolant tank capacity: 250 L
Coolant pump flow: 150 L/min
Coolant pump motor power: 0.73 kW

Machine dimensions with chip conveyor: 5100 x 2130 x 2100 mm
Spindle center height: 1050 mm
Weight with chip conveyor: 6900 kg
Noise level: 76 dB

X-axis motor speed: 2000 rpm
X-axis thrust: 308 kgf
X-axis ballscrew diameter: 32 mm
X-axis pitch: 10 mm

Z-axis motor speed: 2000 rpm
Z-axis thrust: 540 kgf
Z-axis ballscrew diameter: 40 mm
Z-axis pitch: 12 mm

Y-axis motor speed: 2000 rpm
Y-axis thrust: 312 kgf
Y-axis ballscrew diameter: 32 mm
Y-axis pitch: 6 mm
