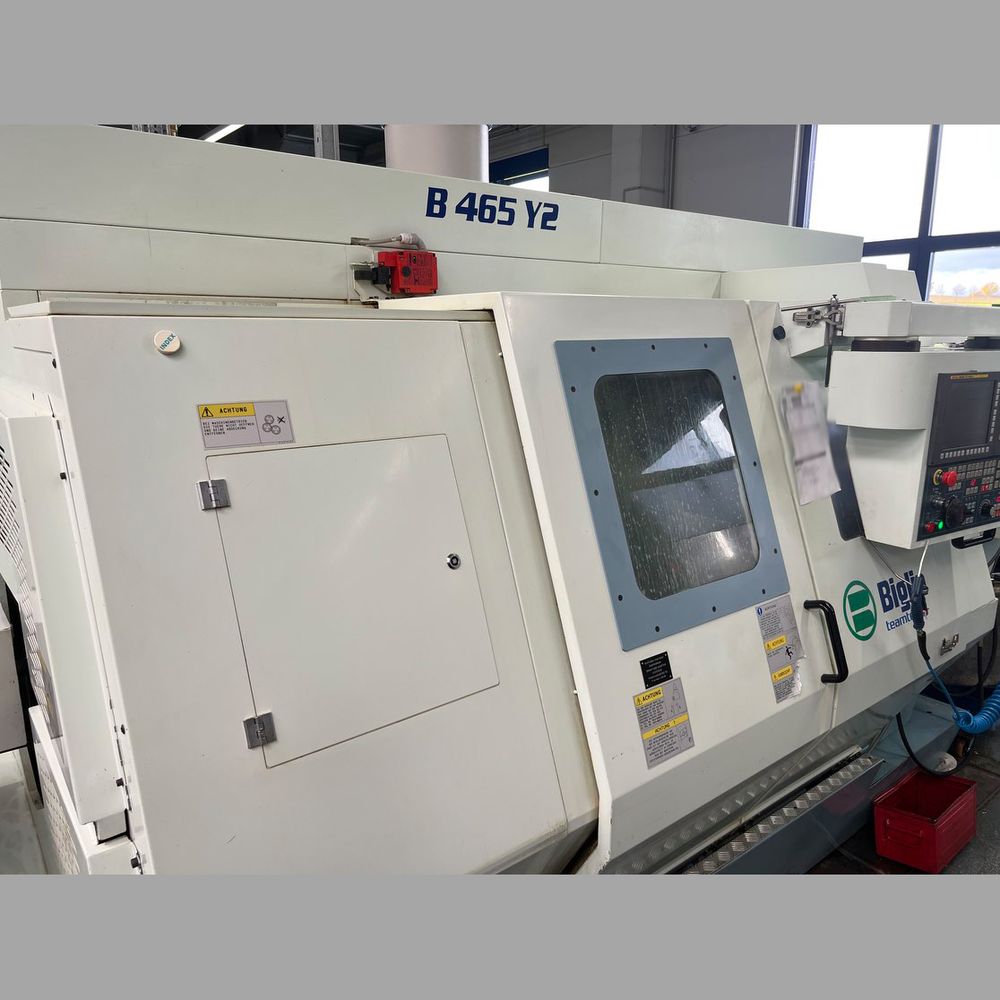

Biglia Fanuc 31i MA 5000 rpm B.465/Y2 3 Axis

X-axis travel: - mm
Y-axis travel: 100 mm
Z-axis travel: - mm
Upper turret axes: X/Y/Z
Lower turret axes: X/Y/Z
Control: Fanuc 31i MA
Max turning diameter: 230 mm
Max turning length: 320 mm
Max swing diameter over cover: 520 mm
Max speed main spindle: 5000 rpm
Spindle bore main spindle: 80 mm
Spindle flange size main spindle: 6 inch
Max speed opposed spindle: 5000 rpm
Spindle bore opposed spindle: 55 mm
Spindle flange size opposed spindle: 5 inch
Upper turret stations/driven: 12/12
Lower turret stations/driven: 12/12
High pressure pump: 25 bar
Operating hours program run: approx. 20,651 h
Operating hours control on: approx. 61,857 h
Max bar diameter: 65 mm
Max bar length: 3000 mm
Machine weight: approx. 7000 kg

FEATURES / EQUIPMENT
Fully enclosed work area
Light in working area
Preparation for oil/emulsion mist extraction unit
Slat band chain chip conveyor
Flush gun
Coolant unit
High pressure pump
Part outfeed conveyor
Bar loader/magazine GIOVANNI CUCCHI CNCDB70
1 set tool holder for turning tools
1 set tool holder for driven tools
