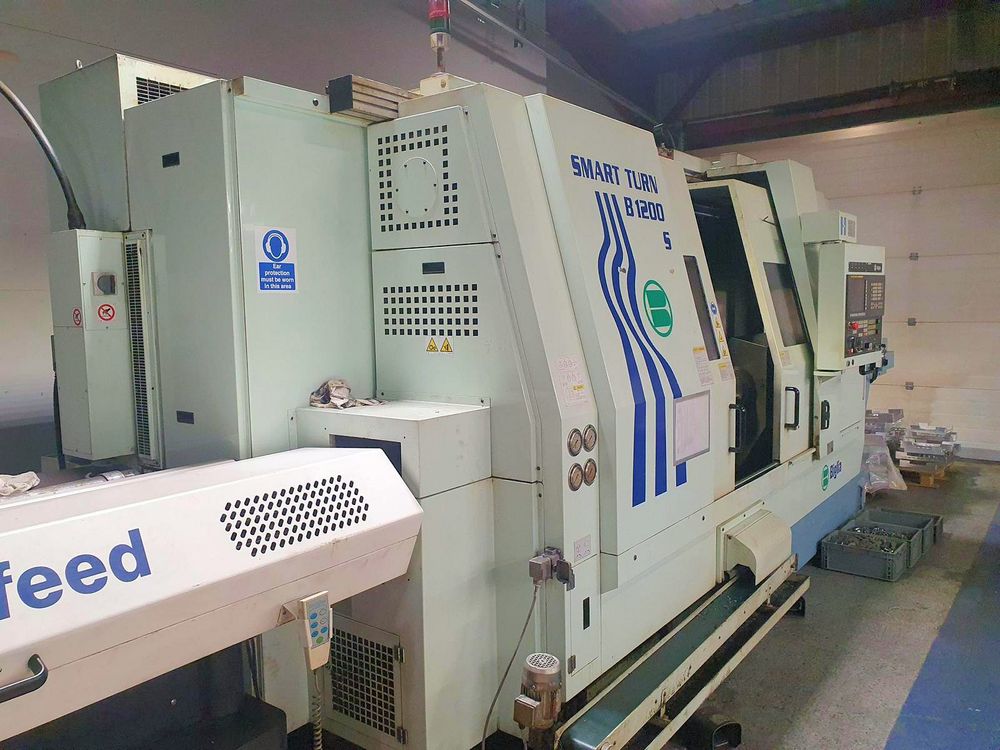

Biglia Fanuc 31i-Model B5 3000rpm SMART TURN B1200 S 5 Axis

X axis travel: 510mm
Y axis travel: +120 / -90mm
Z axis travel: 1300mm
B axis: ±105mm
C axis: 0.001°
Sub spindle C axis: 0.001°
Sub spindle stroke (W axis): 1130mm
Control: Fanuc 31i-Model B5
Swing: 750mm
Maximum cutting diameter: 500mm
Maximum cutting length: 1300mm
Spindle nose: A2-8
Spindle speed: 3000rpm
Spindle motor power: 30kW
Sub spindle bore: 65mm
Sub spindle nose: A2-6
Sub spindle speed: 4000rpm
Sub spindle motor: 24kW
Milling motor power: 20kW
Milling speed: 8000rpm
Tool size: HSK-63A
Tool change capacity: 40 station
Rapid feedrates (X/Y/Z): 20 / 12 / 24 m/min
Machine dimensions: 5500 x 2300 x 2400mm
Machine weight: 8500kg

Features / Equipment
3 jaw chuck
B axis
C axis and milling
Collet chuck
Coolant
Interlocked guards
Low voltage light
Magazine barfeed
Parts catcher
Sub spindle
Swarf conveyor
Through spindle coolant
Tool setter
Y axis
