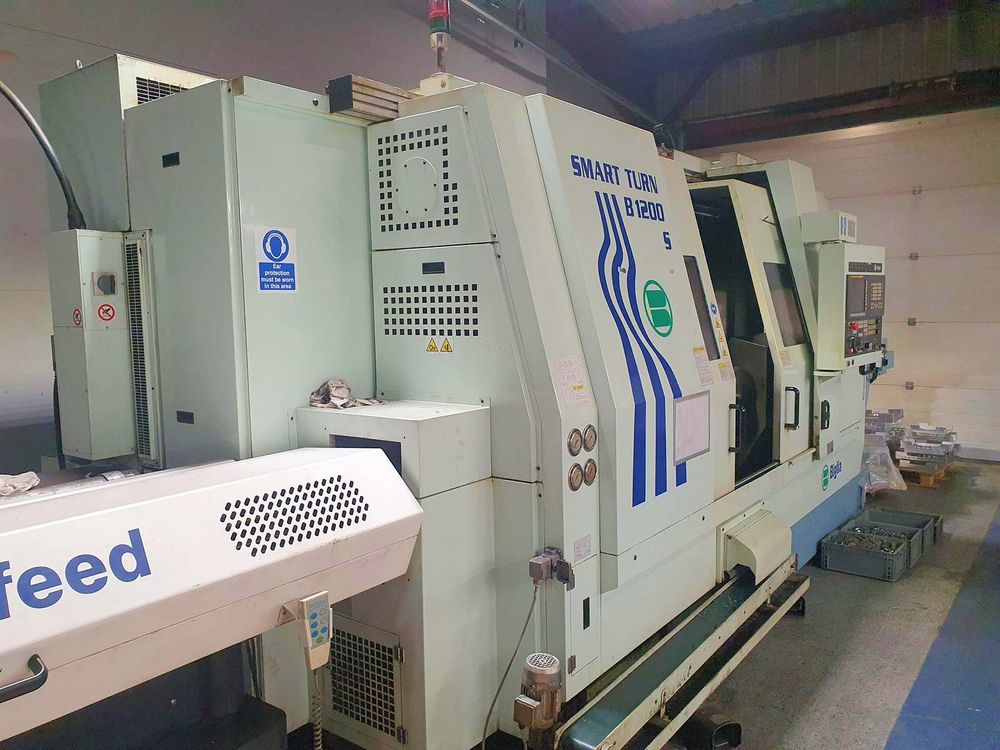

Biglia Fanuc 31i-Model B5 3000rpm Smart Turn B1200 S 5 Axis

X axis travel 510mm
Y axis travel +120/-90mm
Z axis travel 1300mm
B axis +/-105mm
C axis 0.001 degree

Sub Spindle C axis 0.001 degree
Control Fanuc 31i-Model B5
Bar capacity
Maximum cutting diameter 500mm
Maximum cutting length 1300mm
Swing 750mm
Spindle speed 3000rpm
Spindle nose A2-8
Spindle motor power 30kW
Sub spindle speed 4000rpm
Sub spindle nose A2-6
Sub spindle motor 24kW
Sub spindle bore 65mm
Sub spindle stroke 1130mm (W axis)
Milling motor power 20kW
Milling RPM 8000rpm
Rapid feedrates XYZ: 20 x 12 x 24m/minute
Tool change capacity 40 station
Tool size HSK-63A
3 Jaw Chuck
Collet chuck
Coolant
Interlocked guards
Low volt light
Magazine barfeed
Parts catcher
Sub spindle
Swarf conveyor
Through spindle coolant
Tool setter
Y-axis
